ETRONIX 20.3kg/0.12s STD DIGI HIGH VOLTAGE SERVO

Write a review
CHF 55.90
Including tax
Not in stock at the supplier. Delivery date unknown. (Delivery time 4-12 weeks)
+ −
Add to comparison list Add to wish list Rate this product
ET2062

Further products by ETRONIX >

  • Order by 4 PM, delivered tomorrow! (stock items)
  • 30 years of RC model building experience
  • Top service by professional model builders
  • Over 500 manufacturers - 200,000 products

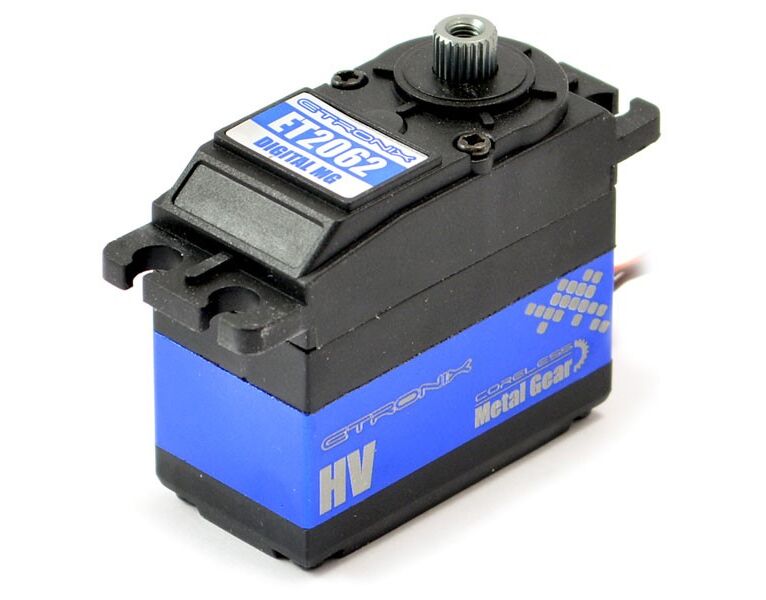

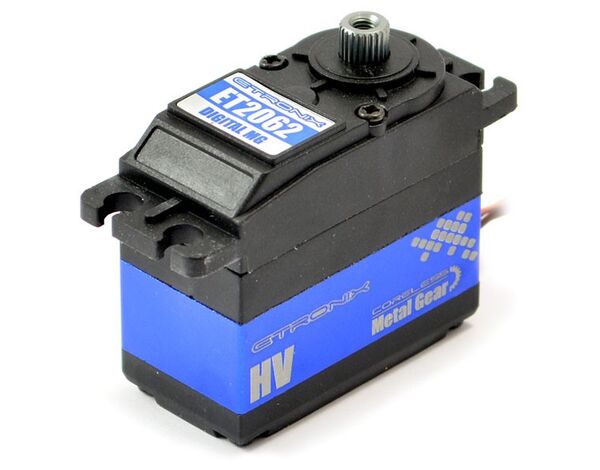

ETRONIX 20.3kg/0.12s STD DIGI HIGH VOLTAGE SERVO METAL GEAR

High performance digital high voltage coreless standard servo
High-precision aluminium gears with hard anodizing
Dual ball bearings
CNC aluminium middle hull
Waterproof
SPECIFICATIONS

Dead Band: 1μs
Working Frequency: 1520μs / 330hz
Motor: Coreless motor
Operating Speed (6.0V): 0.152sec/60°
Operating Speed (8.4V): 0.123sec/60°
Stall Torque (6.0V): 17.25 kg.cm (239.55oz/in)
Stall Torque (8.4V): 20.32 kg.cm (281.89 oz/in)
Dimensions: 40.5X20.5X36.5mm /1.59X0.80X1.43in
Weight: 59.3g (2.09oz)
Connector Wire Length: JR 265 mm (10.43in)

Akku

Application:
  • Hobby Einsteiger
Width mm approx.:
  • 21
Height mm approx.:
  • 40
Weight g approx.:
  • 58

Ladegeräte

Max. Input voltage:
  • 8.4 Volt
Housing material:
Kunstoff / Metall

Motoren Elektro

Motor type:
Coreless

Reifen

Modulation:
Digital

Fernsteuerung

Scope of application:
  • Fahrzeuge

Servos

Housing size:
  • Standard Servo
Positioning force kg:
  • 20
Transmission:
Metall

Servohörner

Length mm approx.:
  • 37

Akkustecker

Plug:
  • Futaba

Werkzeug

Waterproof:
Nein
Servo horn recording:
25 Zähne (Futaba - Savöx - Traxxas usw.) 25T
