DS Servo AS3103 180° 5.5KG/0.22sec6V

Write a review
CHF 8.90
Including tax
> 10 pieces available at supplier - Shipping in: 4 - 8 working days
+ −
Add to comparison list Add to wish list Rate this product
DS002

Further products by DS Servo >

  • Order by 4 PM, delivered tomorrow! (stock items)
  • 30 years of RC model building experience
  • Top service by professional model builders
  • Over 500 manufacturers - 200,000 products

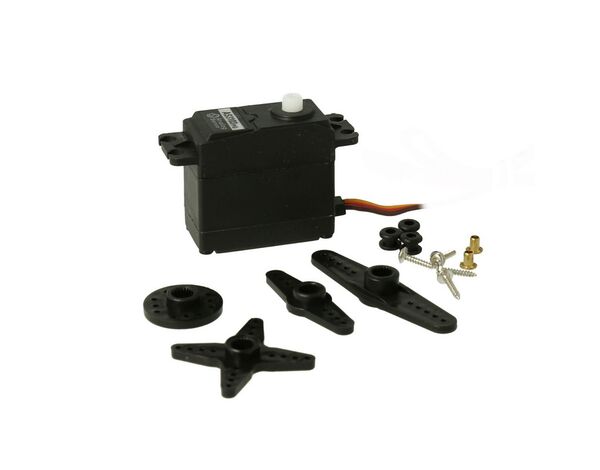

DS Servo AS3103 180° 5.5KG/0.22sec6V

Eigenschaften:

3-Pol-Motor mit Doppel-Kugellager

Hohe Präzision dank 3µsec Deadband

Standardgröße mit 180° Steuerbereich

Gewichtsoptimiert - nur 38g

PWM-gesteuert mit breitem Frequenzbereich (50-330Hz)

Geeignet für 4.8-6V Betriebsspannung

Technische Spezifikationen:

Spannung:4.8V6.0V

Stellgeschwindigkeit:0.19 sec/60°0.22 sec/60°

Drehmoment (Stall):5.0 kgcm5.5 kgcm

Motor:3-Pol

Getriebeübersetzung:240

Art:PWM-Digital

Ansteuerfrequenz:50–330Hz

Kugellager:Doppelt

Abmessungen:40 × 20 × 37.5mm

Gewicht:38.0g

Winkelbereich:180° (500–2500µs PWM)

Positioning time sec.:
  • 0.12
Manufacturer:
DS Servo

Akku

Application:
  • Hobby Einsteiger
Width mm approx.:
  • 37
Height mm approx.:
  • 20
Weight g approx.:
  • 38

Ladegeräte

Max. Input voltage:
  • 6.0 Volt
Housing material:
Kunstoff

Motoren Elektro

Motor type:
Brushed

Reifen

Modulation:
Analog

Fernsteuerung

Scope of application:
  • Fahrzeuge
  • Boote / Schiffe

Servos

Housing size:
  • Standard Servo
Positioning force kg:
  • 5.5
Transmission:
Kunstoff

Servohörner

Length mm approx.:
  • 40

Akkustecker

Plug:
JR Uniplug

Werkzeug

Waterproof:
Nein
Servo horn recording:
25 Zähne (Futaba - Savöx - Traxxas usw.) 25T
