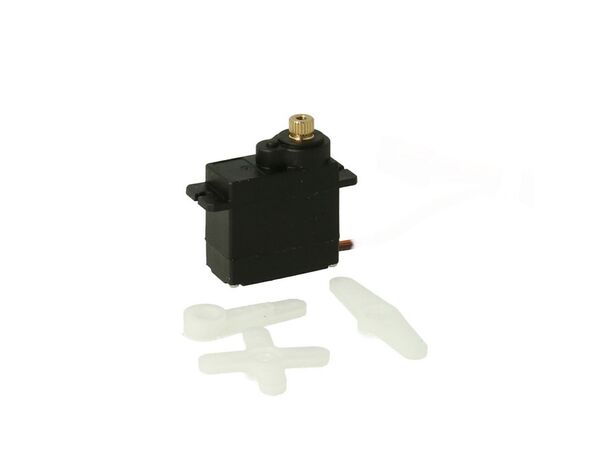

DS Servo 9g Coreless 8KG/0.1sec8.4V

Write a review
CHF 12.90
Including tax
> 10 pieces available at supplier - Shipping in: 4 - 8 working days
+ −
Add to comparison list Add to wish list Rate this product
DS001

Further products by DS Servo >

  • Order by 4 PM, delivered tomorrow! (stock items)
  • 30 years of RC model building experience
  • Top service by professional model builders
  • Over 500 manufacturers - 200,000 products

DS Servo 9g Coreless 8KG/0.1sec8.4V

Eigenschaften:

Nur 13g leicht - ideal für Drohnen, Segler & kleine RC-Modelle

Hohe Stellkraft bis zu 8kgcm bei 8.4V

Coreless 3-Pol-Motor mit Metallgetriebe

Mini-Gehäuse mit doppelten Kugellagern

Extrem feinfühlig dank 3µsec Deadband

PWM-kompatibel, Steuerwinkel bis 270°

Technische Spezifikationen:

Spannung:6.0V7.4V8.4V

Stellgeschwindigkeit:0.14 sec/60°0.12 sec/60°0.10 sec/60°

Drehmoment (Stall):4.5 kgcm6.5 kgcm8.0 kgcm

Motor:3-Pol Coreless

Getriebeübersetzung:410

Art:Digital (PWM)

Ansteuerfrequenz:50–330Hz

Kugellager:Doppelt

Abmessungen:24 × 11.8 × 21.9mm

Gewicht:13.0g

Winkelbereich:180° oder 270° (500–2500µs)

Wasserdicht:Nein

Positioning time sec.:
  • 0.10
Manufacturer:
DS Servo

Akku

Application:
  • Hobby Einsteiger
Width mm approx.:
  • 22
Height mm approx.:
  • 12
Weight g approx.:
  • 13

Ladegeräte

Max. Input voltage:
  • 8.4 Volt
Housing material:
Kunstoff

Motoren Elektro

Motor type:
Coreless

Reifen

Modulation:
Digital

Fernsteuerung

Scope of application:
  • Fahrzeuge
  • Boote / Schiffe

Servos

Housing size:
  • Mini Servo
Positioning force kg:
  • 8.0
Transmission:
Metall

Servohörner

Length mm approx.:
  • 24

Akkustecker

Plug:
  • JR Uniplug

Werkzeug

Waterproof:
Nein
Servo horn recording:
25 Zähne (Futaba - Savöx - Traxxas usw.) 25T
