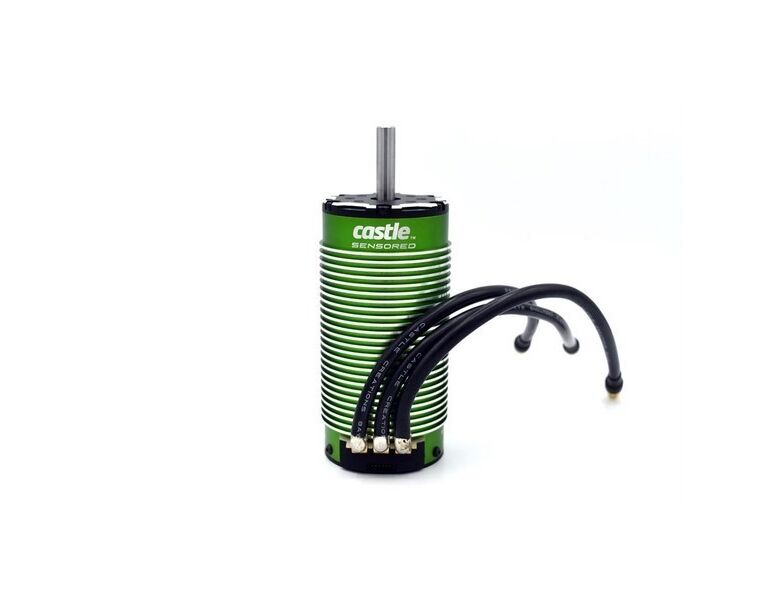

Castle MOTOR SENSORED 2028 1100KV BL 4-POLE

Castle MOTOR SENSORED 2028 1100KV BL 4-POLE

Motor Specs

Input Voltage Range:

12S max (8s max with XLX2)

Kv: 1100

Max. RPM: 45,000

Motor Size: Length: 4.4" (113.2mm)

Diameter: 2.2" (57mm)

Shaft Size:

Length: 30mm

Diameter: 8mm

Weight (w/wires): 44 oz. / 1.25kg

Mounting Hole Specifications: 4mm @ 30mm spacing

Cooling Fan: Available, but not included (011-0019-00)

Connectors: 8.0mm male bullets.

Items Needed for Operation: N/A

Product Use Statements:

Do not use mounting screws that extend more than 5mm into the front of the motor. Using too long of a screw can result in damage to the motor's windings and will not be covered by the warranty.

Application Guidelines: N/A

Max. Recommended Vehicle Weight:

Vehicles weighing less than 30lbs (13,6kg)

Tech Notes:

Running modes: Sensorless and Sensored

Water Resistant Design:

The sensor board is coated with silicone conformal coating to protect the sensors from moisture. The sensor connections are not water resistant; water can cause signal loss which could result in loss of sensored capabilities. Castle recommended applying dielectric grease to the outside of the sensor wire connections after installation of the wire. Routine maintenance is recommended after running in wet conditions. Please refer to this document for running and maintaining motors in wet environments.
