Castle MOTOR/REGLER MAMBA MICRO X2 1010 4400kv
- Order by 4 PM, delivered tomorrow! (stock items)
- 30 years of RC model building experience
- Top service by professional model builders
- Over 500 manufacturers - 200,000 products
Please sign in so that we can notify you about a reply

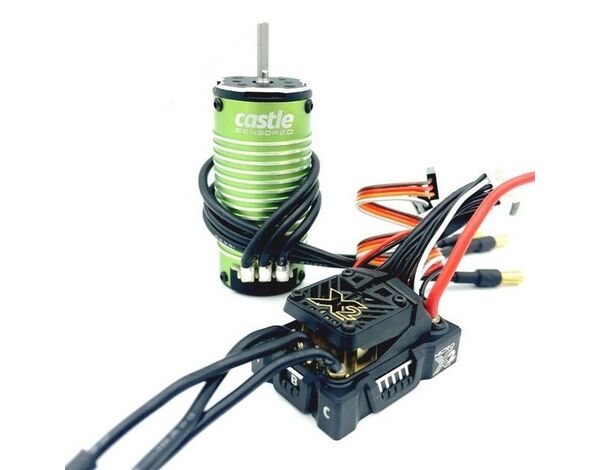

Castle MOTOR/REGLER MAMBA MICRO X2 1010 4400kv/SENSORED 16.8V WP ESC (4.0mm)
Putting the X in Extreme!
The Mamba Micro X2 is a refresh of our popular Mamba Micro X. This new ESC increases the maximum input voltage to 4s. We also added DATA LOGGING and our CRYO-DRIVE™ TECHNOLOGY; CryoDrive allows the ESC to run cooler and more efficiently at partial throttle. Like its predecessor, it is waterproof* and has SENSORED MOTOR SUPPORT.
This ESC and Motor Combo is ideal for 1/14th and 1/16th scale vehicles, weighing up to 3lbs and up to 4s LiPo. The sensored 1010-4400kv motor allows for smooth startup with heaps of torque and low temperatures.
FEATURES:
- Input Voltage range 2S-4S.
- Waterproof design, included CC BEC is not waterproof.
- Sensored Motor capable
- Convenient transmitter programming for six common adjustable settings.
- Additional settings and software updates available via Windows®-based Castle Link software and USB adapter (coupon included with purchase) or the Castle Link App and a B-LINK Bluetooth Adapter (discount coupon included)
- Telemetry Ready (Compatible with S.BUS2 Telemetry Link and Futaba T4PX, T7PX and T7PXR transmitters)
- Auxiliary Wire Functionality allows for “on-the-fly” adjustments such as Max Power and Max Brake.
- Audible Alerts that will notify you of possible issues with calibrations and error conditions.
- Designed and manufactured in Olathe, Kansas and is backed by our 1-year warranty.
Mamba Micro X2 w/1010-4400Kv Purchase Includes:
- Mamba Micro X2 ESC with 4mm Connectors
- External 10-amp CC BEC
- 1010-4400Kv Sensored Motor
- Sensor Harness
- Coupon for free Castle Link USB adapter or discounted B-Link Bluetooth adapter
- Quick Start Guide
- Castle Decals
| Technical Specs Mamba Micro X2 ESC | |
|---|---|
| Input Voltage Range: | 2S-4S LiPo (16.8V Max) |
| BEC Specifications: | No internal BEC in ESC. External 10-amp CC BEC Included. |
| Operating Environment: | Waterproof* design allows for use in nearly any environment; included CC BEC is not waterproof. |
| Brake: | Proportional |
| Reversible: | Yes, but may be disabled |
| On/Off Switch: | Yes, waterproof |
| Cooling Fan: | Coming soon, uses 25mm size fan |
| Size (L x W x H): | 41.6 mm x 29.4 mm x 21.3 mm (1.64" x 1.16" x .84") |
| Weight (with wires): | 1.66 oz / 47 grams |
| Connectors: | 4.0 mm bullets |
| Items Needed for Operation: | Battery Connector required: Castle 4.0mm Polarized Connectors, Deans Ultra Plugs and XT60 are recommended. |
| Product Use Statements: |
|
| Programmability: | Additional settings and software updates available via Windows®-based Castle Link software and USB adapter (coupon included with purchase) or the Castle Link App for Android or iOS and a B-LINK Bluetooth Adapter (sold separately) |
| Telemetry Link Capable: | Yes, with Castle Creations Telemetry Link for S.BUS2 and Futaba T4PX and T7PX Transmitters. |
| Tech Notes: |
*Although the Mamba Micro X2 is waterproof, it is not intended for operation while completely submerged in liquid. They can corrode when exposed to corrosive materials, such as salt water. Always rinse the ESC with clean water after exposure to corrosives or dirt. While the controller may be waterproof, we suggest users confirm that the rest of their vehicle, including the batteries, servos, radio and chassis are also waterproof before exposing them to liquids of any kind.
|
| Technical Specs 1010-4400Kv Sensored Motor | |
|---|---|
| Input Voltage Range: | 2S-4S LiPo |
| Kv: | 4400 |
| Max. RPM: | 80,000 |
| Size: | Length: 59.5mm Diameter: 28.25mm |
| Weight (w/wires): | 5.17oz (46.5g) |
| Shaft Size: | Length: 15mm Diameter: 1/8" (3.17mm) |
| Mounting Hole Specifications: | M2.5 @ 14mm & 16mm; M3 @ 19mm |
| Connectors: | 4mm male Castle Bullet Connectors attached to replaceable 16 gauge wire; includes 210mm length sensored wire. |
| Application Guidelines: | Ideal for 1/14th and 1/16 vehicles weighing up to 3lbs and up to 4s LiPo |
| Max. Recommended Vehicle Weight: | 3lbs |
| Tech Notes: |
Running modes: SmartSense™ Sensored and an ultra-efficient Sensorless mode. |
Programmable (external):
Ja
Manufacturer:
Castle Creations
Akku
Application:
- Hobby Racer / Basher
- Competition Wettbewerb
Fahrtenregler
Max. Operating voltage:
- 14.8 Volt
Lipo cell count max.:
- 4
Motoren Elektro
Shaft diameter mm:
- 3.14 mm (1/10 Standard)
Speed KV per volt:
4400
Brushless Set
Connections:
- Lötarbeiten Erforderlich
Reifen
Controller type:
- Brushless Sensored
Diameter mm approx.:
- 28
Karosserien
Size scale:
- 1/16
- 1/14
Vehicle type:
- Buggy Offroad
- Stadium Truck / Truggy Offroad
- Monster Truck Offroad
Fernsteuerung
Scope of application:
- Fahrzeuge
Servohörner
Length mm approx.:
- 60
Werkzeug
Waterproof:
Ja
