Castle MOTOR/RELGER 1/8 MAMBA MONSTER X 8S 33.6V E

Écrire une critique
CHF 532.90
Taxe incluse
Pas en stock chez le fournisseur. Date de livraison inconnue. (Délai de livraison min. 4 semaines)
+ −
Ajouter a la liste de comparaison Ajouter à la liste de souhaits Évaluer
Castle-010016505

Autres articles de Castle Creations >

  • Commandé avant 16h, livré demain ! (articles en stock)
  • 30 ans d'expérience en modélisme RC
  • Service de qualité par des professionnels du modélisme
  • Plus de 500 fabricants - 200 000 articles

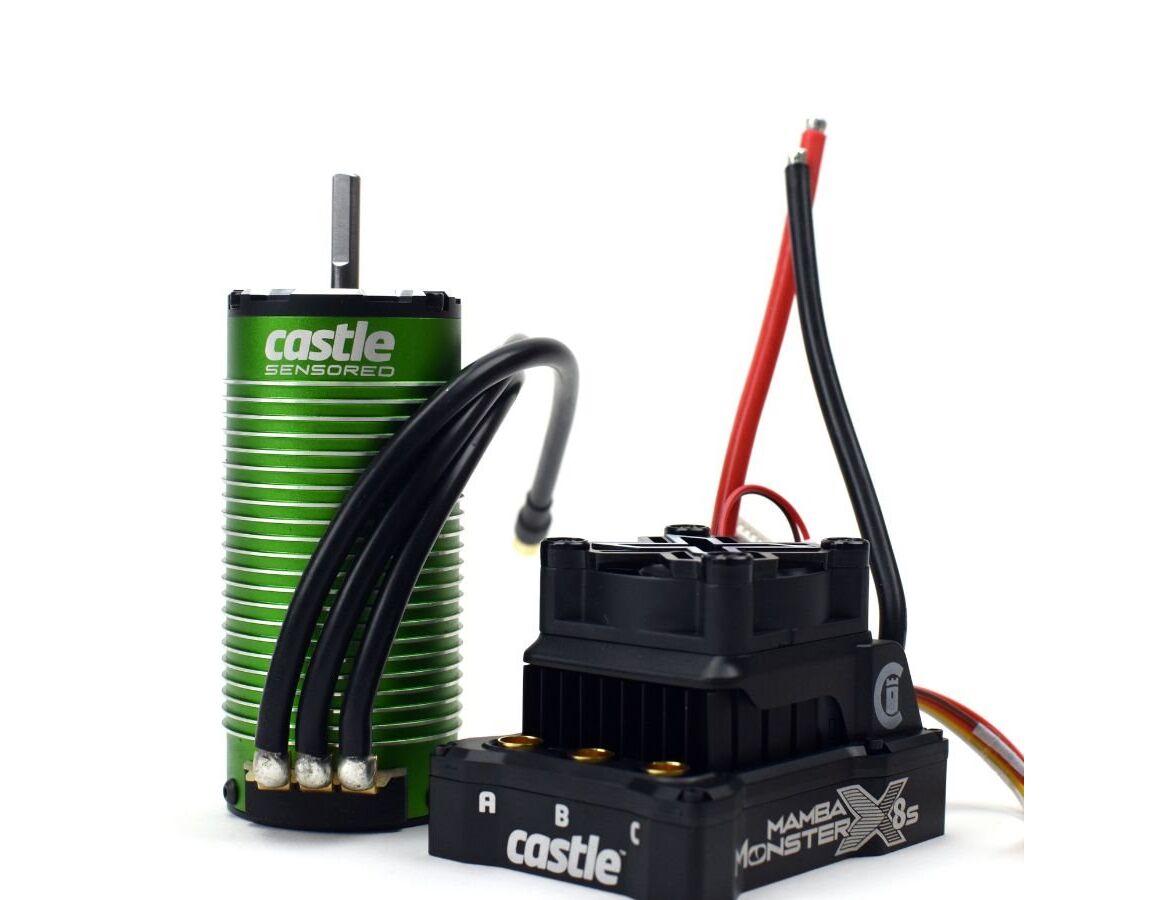

Castle MOTOR/RELGER 1/8 MAMBA MONSTER X 8S 33.6V ESC 1520-1650KV V2 SENSORED MOTOR



MORE POWER - COOLER TEMPS - LONGER RUNS

Experience higher efficiency, advanced features and improved optimization for your stock upgrade or build with Castle’s legendary brushless power.  The MAMBA MONSTER X 8S, 33.6V ESC W/1520-1650KV SENSORED COMBO is a perfect upgrade for 1/8, 1/7 and 1/6 scale vehicles weighing up to 18lbs and up to 8S LiPo. The 1520-1650Kv has all of the secret sauce that the big brother 1717-1650Kv has, but in a more compact diameter, fitting into smaller spaces without modifications to your chassis.

 New 1520-1650Kv V2 motor now included!  Our commitment to progress is driven by our passion for unlocking untapped potential. We constantly challenge ourselves to find new ways to enhance our products which is why we are excited to share the newly redesigned 1520-1650Kv V2. The transformation has included several improvements, most contributed by new stator and rotor assembly upgrades that, in turn, allow for even HIGHER EFFICIENCY, REDUCED TEMPERATURES, AND SMOOTHER START-UPS!



MAMBA MONSTER X 8S FEATURES:

  • Input Voltage Range 2S-8S LiPo
  • Sensorless, Sensored and SmartSense™ Running Modes
  • Powerful Integrated 8A Peak Adjustable BEC (5.25V-8.0V)
  • CRYO-DRIVE™ Technology minimizes the amount of time the ESC’s electrical components spend generating heat, resulting in improved thermal performance during partial throttle operation where the majority of driving occurs
  • ESC is housed in a rugged CNC aluminum case and potted in waterproof epoxy to  protect the electronics and promote efficient heat transfer
  • Premium forged heatsink with elliptical fins for superior air flow and increased heat dissipation
  • Oversized factory equipped thermally controlled 40MM cooling fan
  • Compatible with S.BUS2 Telemetry Link and Futaba T4PX and T7PX transmitters

1520-1650Kv V2 MOTOR FEATURES:

  • Input Voltage range: 3s-8s LiPo
  • Redesigned rotor and stator assemblies.
  • Reduced magnetic cogging, producing less residual drag brake.
  • Increased efficiency, resulting in lower temperatures and longer run times.
  • Smoother start-up, reducing cogging or stuttering when starting from a stop.
  • High-Strength Kevlar Wrap and 180C Grade Neodymium Sintered Magnets
  • Oversized NMB Bearings and High-Temperature, High-Purity Copper Windings

MAMBA MONSTER X 8S, 33.6V ESC W/1520-1650Kv V2 SENSORED COMES WITH:

  • Mamba Monster X 8S ESC
  • 4-POLE Sensored 1520-1650Kv V2 Motor
  • Castle Sensor Harness Adapter
  • 200mm Sensor Wire

Technical Specs
Controller:
Input Voltage Range: MIN: 2S LiPo , MAX: 8S LiPo (33.6V)
BEC Specifications: Adjustable: 5.5V, 6.0V, 7.5V. or 8.0V (8A Peak), default 5.5V
Operating Environment: Waterproof* design allows for use in nearly any environment.
Brake: Proportional
Reversible: Yes, but may be disabled for racing.
On/Off Switch: Yes, waterproof
Cooling Fan: Yes, factory equipped (40MM), fully removable** (see Product Use Statements below)
Size (L x W X H): 2.73" x 2.13" x 1.85" (69.5mm x 54.1mm x 47mm)
Weight (with no battery connector): 5.75 oz. (163 grams)
Connectors: 6.5mm female bullets for motor connection.
Items Needed for Operation: A high current connector designed for high-powered electric systems, rated for 120+ amps, such as Castle CC Bullet 6.5mm, CC Bullet 8.0mm, or 6.5mm Polarized Castle Connectors, soldered to the battery leads.
Product Use Statements:
  1. Recommended battery capacity for 1:6th scale vehicles is 5000mah. We recommend using 50C continuous discharge or higher LiPo batteries.
  2. Surge ratings should never be used to determine a pack’s suitability for a brushless application.
  3. We recommend a high current connector designed for high-powered electric systems, rated for 120+ amps, such as Castle CC Bullet 6.5mm, CC Bullet 8.0mm, or 6.5mm Polarized Castle Connectors.
  4. Applying voltages higher than 33.6V will cause irreparable damage to ESC.
  5. Although Mamba Monster X 8S is waterproof, it is not intended for operation while completely submerged in liquid. Always rinse the ESC with clean water after exposure to corrosives or dirt.
  6. The cooling fan must be removed prior to driving in wet conditions. It is not waterproof.
  7. Note: While many users have utilized the Mamba Monster X 8s in extremely high speed applications and drag setups, it is NOT intended for this application. As such the Castle warranty does NOT cover failure when used in high speed or drag applications.
Application Guidelines: Mamba Monster X 8S and 1520-1650Kv motor is intended for use in 1/6, 1/7 and 1/8 scale vehicles weighing up to 18 lbs. and running up to 8s LiPo. Examples include Losi LST2-E™; Arrma™: Limitless™, Typhon™ 6s, Kraton 6s™, Kraton EXB™, Infraction™ Felony™ 6s, Notorious 6s™, Talion™ 6s; Kyosho Inferno™, Traxxas: E-Maxx™, E-Revo™, UDR™, Summit™; Redcat Shredder™
Programmability:
 Fully programmable Castle feature set using Castle Link USB adapter (sold separately) and freely downloadable Castle Link Windows™ software, or the Castle Link iOS® or Android® app with B-LINK™ Bluetooth™ Adapter (sold separately).
Telemetry Link Capable:
 Yes, with Castle Creations Telemetry Link for S.BUS2 and Futaba T4PX and T7PX transmitters.

Motor Specs
Input Voltage Range: 3s - 8s LiPo
Kv: 1650
Max. RPM: 60,000
Size: Length: 3.50" (88.8mm)
Diameter: 1.64" (41.6mm)
Weight (w/wires): 508g (17.92 oz); 459g without wires.
Shaft Diameter: 5mm
Mounting Hole Specifications: M3 and [email protected] (1.0") Diameter
Cooling Fan: 011-0139-00
Connectors: 6.5mm male bullets
Application Guidelines:
 The 1520-1650kV motor is intended for use in 1/6, 1/7 and 1/8 scale vehicles weighing up to 18 lbs. and running up to 8s LiPo. Examples include Losi LST2-E™; Arrma™: Limitless™, Typhon™ 6s, Kraton 6s™, Kraton EXB™, Infraction™ Felony™ 6s, Notorious 6s™, Talion™ 6s; Kyosho Inferno™, Traxxas: E-Maxx™, E-Revo™, UDR™, Summit™; Redcat Shredder™
Tech Notes:
  1. This motor includes 10AWG wire and 6.5mm connectors for use specifically this ESC/Motor combo.
  2. Running modes: SMARTSENSE™, Sensored, Sensorless with Castle sensored capable ESCs.
  3. Water Resistant Design: The sensor board is coated with silicone conformal coating to protect the sensors from moisture. The sensor connections are not water resistant; water can cause signal loss which could result in loss of sensored capabilities. Castle recommended applying dielectric grease to the outside of the sensor wire connections after installation of the wire. Routine maintenance is recommended after running in wet conditions. Please refer to this document for running and maintaining motors in wet environments.



Programmable (externe):
Ja
Fabricant:
Castle Creations

Akku

Application:
  • Hobby Racer / Basher

Fahrtenregler

Tension de fonctionnement max.:
  • 33.3 Volt
Nombre de cellules lipo max.:
  • 8

Motoren Elektro

Diamètre de l'arbre mm:
  • 5 mm (1/8 Standard)
Vitesse KV par volt:
1650
Ampère BEC max.:
  • 8
Connexion moteur:
  • 6.5 mm

Brushless Set

Connexions:
  • Lötarbeiten Erforderlich
Tension BEC:
  • 6.0 Volt
  • 7.4 Volt

Lüfter / Kühlkörper

Ventilateur:
Ja

Reifen

Type de contrôleur:
  • Brushless Sensored
Diamètre mm env.:
  • 42

Karosserien

Echelle de taille:
  • 1/6
Type de véhicule:
  • Buggy Offroad
  • Stadium Truck / Truggy Offroad
  • Monster Truck Offroad
  • GT Onroad
  • Pan Car - 1/8 - Flachbahner Onroad

Fernsteuerung

Portée:
  • Fahrzeuge

Servohörner

Longueur mm env.:
  • 89

Akkustecker

Bouchon:
  • 6.5 mm Goldstecker

Werkzeug

Imperméable:
Ja
