Castle MOTOR/REGLER 1/10 SW 4 w/1412-2100 SENSORED

Écrire une critique
CHF 239.90
Taxe incluse
Pas en stock chez le fournisseur. Date de livraison inconnue. (Délai de livraison min. 4 semaines)
+ −
Ajouter a la liste de comparaison Ajouter à la liste de souhaits Évaluer
Castle-010016408

Autres articles de Castle Creations >

  • Commandé avant 16h, livré demain ! (articles en stock)
  • 30 ans d'expérience en modélisme RC
  • Service de qualité par des professionnels du modélisme
  • Plus de 500 fabricants - 200 000 articles

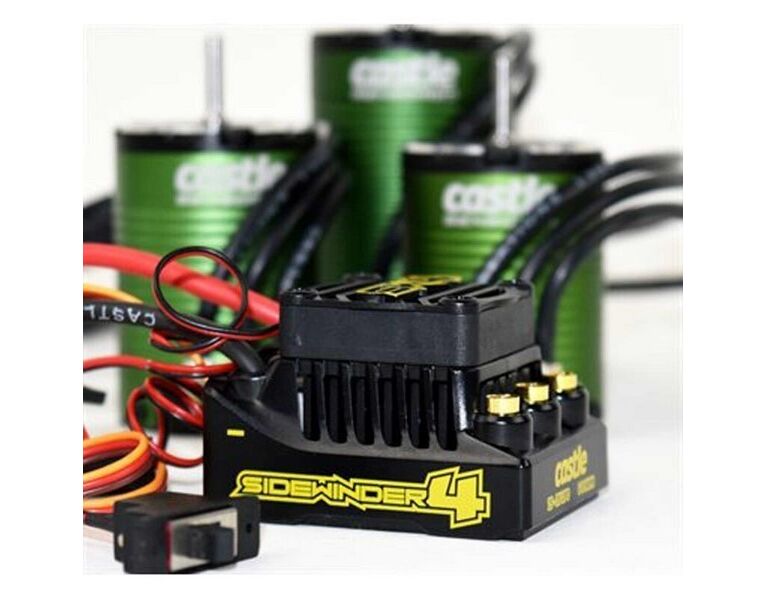

Castle MOTOR/REGLER 1/10 SW 4 w/1412-2100 SENSORED MOTOR



While the all new SIDEWINDER 4™ builds upon Castle’s most popular platform, the SIDEWINDER 1:10 SCALE SERIES, it is the first of its kind to run Castle’s newest technology, CRYO-DRIVE™. CRYO-DRIVE™ combines technology from cutting-edge hardware and software advancements to increase thermal performance. COOLER TEMPS mean LONGER RUNS and MORE POWER in your SIDEWINDER 4 setup.

  • Input Voltage Range for 1412-2100 Kv Combo : 2s-3s LiPo
  • SENSORLESS and BRUSHED Running Modes
  • 5.0 VOLTS FIXED, 2AMP internal BEC (Battery Eliminator Circuit)
  • CRYO-DRIVE™ Technology minimizes the amount of time the ESC’s electrical components spend generating heat, resulting in improved thermal performance during partial throttle operation where the majority of driving occurs.
  • ESC is housed in a durable injection molded case and potted in WATERPROOF epoxy to protect the electronics and promote efficient heat transfer.
  • 30mm removable fan
  • Compatible with S.BUS2 Telemetry Link and Futaba T4PX, T7PX and T7PXR transmitters
  • AUDIBLE ALERTS for easy diagnosis of common issues such as motor-over-temperature and low-voltage cutoff.

Technical Specs
Controller
Input Voltage Range: 2s - 3s LiPo; 6 - 8 cell NiMH
BEC Specifications: 5.0 volts fixed, 2 amps.
Operating Environment: Waterproof* design allows for use in nearly any environment
Brake: Proportional
Reversible: Yes, but may be disabled for racing.
On/Off Switch: Yes
Cooling Fan: 30mm fan included
ESC Size: L: 2.08" (52.92mm)
W: 1.50" (38.05mm)
H: 1.28" (32.56mm)
ESC Weight (w/wires): 2.26 oz. (64 g)
Connectors: 4mm female bullets for motor connection.
Items Needed for Operation: Battery Connector required; Castle 4mm polarized connectors, Dean's Ultra Plug, or Traxxas Power Connector recommended.
Product Use Statements: *Although Sidewinder 4 is waterproof, it is not intended for operation while completely submerged in liquid. They can corrode when exposed to corrosive materials, such as salt water. Always rinse the ESC with clean water after exposure to corrosives or dirt. While the controller may be waterproof, we suggest users confirm that the rest of their vehicle, including the batteries, servos, radio and chassis are also waterproof before exposing them to liquids of any kind.
Application Guidelines: For short course trucks running on 2s or 3s LiPo and weighing up to 6.5 lbs.
It is a cooling running torque animal for lighter 1/10th scale 2WD stadium trucks and buggies running up to a 3s LiPo.
Please refer to our Gearing Chart for recommended motor, battery and gearing for some of the more popular vehicles on the market.
Recommended Motors: Combo includes 1412-2100kv brushless motor.
Max. Recommended Vehicle Weight: No more than 6.5lbs with battery, ready-to-run.
Programmability: Fully programmable Castle feature set using Castle Link USB adapter (sold separately) and freely downloadable Castle Link Windows software, or the Castle Link App and a B-LINK Bluetooth Adapter (sold separately).
Telemetry Link Capable: Yes, with Castle Creations Telemetry Link for S.BUS2 and Futaba T4PX, T7PX and T7PXR Transmitters.
Tech Notes: Not all LiPos are created equal, and surge ratings should never be used to determine a pack’s suitability for a brushless application. Use the CONTINUOUS C rating only. Brushless setups frequently hit 100+ amps in peaks. We strongly suggest using 5,000 mAh or larger LiPo cells with a discharge rating of at least 30C (or high quality 25C batteries such as Traxxas® Power Cells®). Our experience suggests using only mild gear ratios with NiMH cells. Do not attempt to use NiMH cells in extreme setups.
Motor Technical Specs
Input Voltage Range: 2s-4s LiPo (3s Max with included Sidewinder 4)
Kv: 2100
Max. RPM: 75,000
Size: Length: 62.5 mm
Diameter: 36 mm
Weight (w/wires): 265.4g (9.4oz)
Shaft Size: Length: 15 mm
Diameter: 1/8" (3.17 mm)
Mounting Hole Specifications: M3 @ 25mm
Cooling Fan: Optional
Connectors: 4mm male Castle Bullet Connectors attached to replaceable 13 gauge wire; includes 210 mm length sensor wire
Application Guidelines: Ideal for 1:10 scale 2WD and 4WD SC Trucks, Monster Trucks and rock racers
Max. Recommended Vehicle Weight: 6.5lbs
Tech Notes:

Monitor motor temperatures closely; overheating a motor will cause permanent damage to the magnets. Never exceed 180° F on the the motor or ESC.
Water Resistant Design: Routine maintenance is recommended after running in wet conditions.Please refer to this document for running and maintaining motors in wet environments.




Programmable (externe):
Ja
Fabricant:
Castle Creations

Akku

Application:
  • Hobby Racer / Basher
  • Competition Wettbewerb

Fahrtenregler

Tension de fonctionnement max.:
  • 11.1 Volt
Taille du Ventilateur:
  • 550 1/10 Lang 3660 (D=36mm)
Nombre de cellules lipo max.:
  • 3

Motoren Elektro

Diamètre de l'arbre mm:
  • 3.14 mm (1/10 Standard)
Vitesse KV par volt:
2100
Ampère BEC max.:
  • 2

Brushless Set

Connexions:
  • Lötarbeiten Erforderlich
Tension BEC:
  • 5.0 Volt

Lüfter / Kühlkörper

Ventilateur:
Ja

Reifen

Type de contrôleur:
  • Brushless Sensored
Diamètre mm env.:
  • 36

Karosserien

Echelle de taille:
  • 1/10
Type de véhicule:
  • Stadium Truck / Truggy Offroad

Fernsteuerung

Portée:
  • Fahrzeuge

Servohörner

Longueur mm env.:
  • 62

Balancer Verlängerungen

Convient pour le modèle:
  • Arrma Granite 4x4 - 550 Mega 1/10 - 2S
  • Arrma Typhon 4x4 550 Mega 1/8 - 2S
  • Maverick Phantom XT
  • Maverick STRADA XT
  • Traxxas Rustler 2WD 1/10 - XL-5
  • Traxxas Rustler 4x4 1/10 - XL-5
  • Traxxas Slash 2WD 1/10 - XL-5

Werkzeug

Imperméable:
Ja
