C9266 MASTER Servo DS2408 HV

Write a review
CHF 25.90
Including tax
1pc. or more pieces available at supplier - Shipping in: 7 - 14 working days
+ −
Add to comparison list Add to wish list Rate this product
C9266

Further products by Pichler Modellbau >

  • Order by 4 PM, delivered tomorrow! (stock items)
  • 30 years of RC model building experience
  • Top service by professional model builders
  • Over 500 manufacturers - 200,000 products

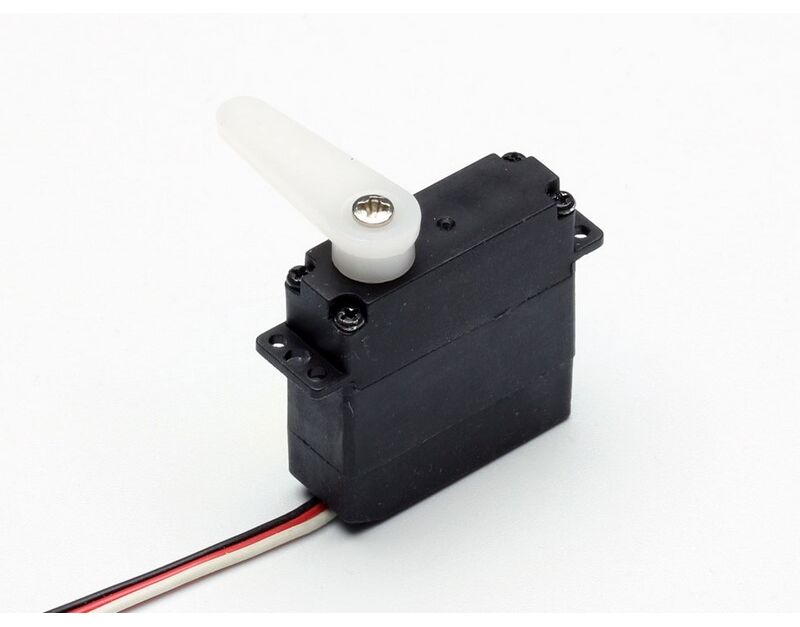

C9266 MASTER Servo DS2408 HV

Besonders hochwertiges 9g Servo ideal auch als Flächenservo für kleinere bis mittlere Segler, robustes Titangetriebe und Glockenankermotor (Coreless Motor). Hochvolt (HV) Version, kann z.B. direkt über einen 2S (7,4V) LiPo Akku betrieben werden.

Technische Daten

Betriebsspannung = 6,0 -7,4V

Stellkraft = 2,0 / 2,6kg

Stellzeit = 0,07 / 0,05s @ 45°

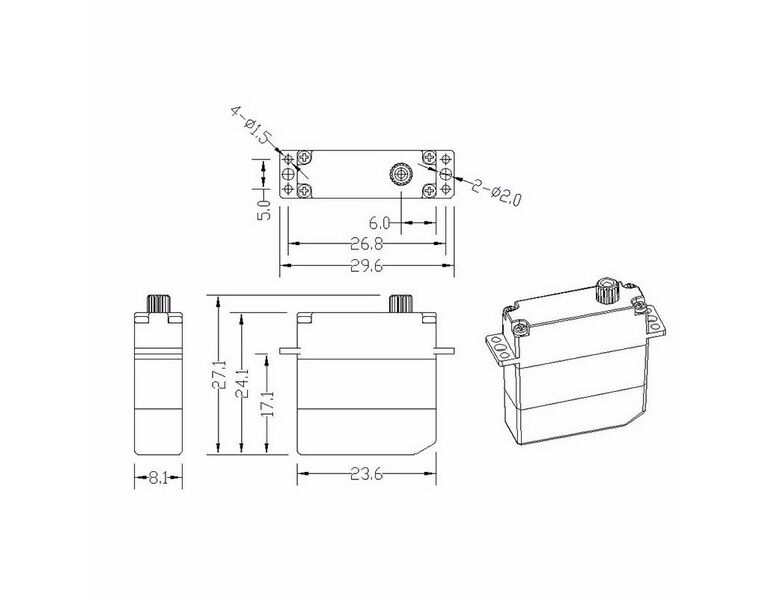

Breite = 8,0mm

Länge = 24,0mm

Höhe = 24,0mm

Gewicht = 9,5g

Digital-Servo

Titangetriebe

2 Kugellager

Glockenanker Motor

Anschlusskabel 3-polig JR/Futaba Uni

Inkl. verschiedene Steuerscheiben/Hebel, Schrauben

Positioning time sec.:
  • 0.05
Manufacturer:
Pichler Modellbau

Akku

Application:
  • Hobby Racer / Basher
Width mm approx.:
  • 24
Height mm approx.:
  • 8
Weight g approx.:
  • 10

Ladegeräte

Max. Input voltage:
  • 7.4 Volt
Housing material:
Kunstoff

Motoren Elektro

Motor type:
Brushed

Reifen

Modulation:
Digital

Fernsteuerung

Scope of application:
  • Flugmodelle

Servos

Housing size:
  • Flächen Servo
Positioning force kg:
  • 2.6
Transmission:
Metall

Servohörner

Length mm approx.:
  • 24

Akkustecker

Plug:
  • JR Uniplug

Werkzeug

Waterproof:
Nein
Servo horn recording:
Andere
