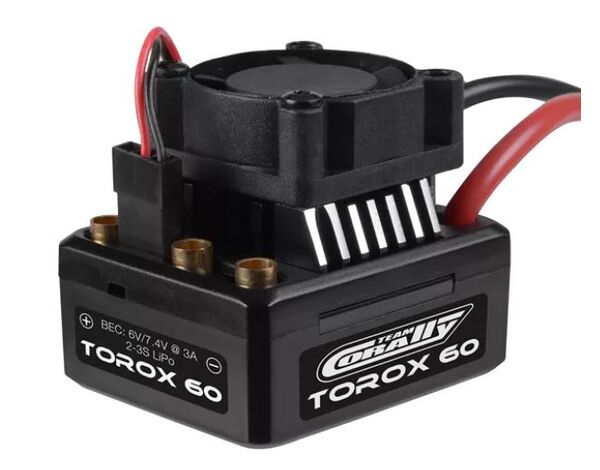

C-54010 Speed Controller - TOROX 60 - Brushless

Write a review
CHF 69.90
Including tax
> 10 pieces available at supplier - Shipping in: 10 - 20 working days
+ −
Add to comparison list Add to wish list Rate this product
C-54010

Further products by Team Corally >

  • Order by 4 PM, delivered tomorrow! (stock items)
  • 30 years of RC model building experience
  • Top service by professional model builders
  • Over 500 manufacturers - 200,000 products

Team Corally Speed Controller - TOROX 60 - Brushless - 2-3S

General Info

Brand

Team Corally

Item Nr

C-54010

Barcode

8718057182885

ESC - Specs

ESC- Input Voltage Range (V)

2S - 3S Li-Po

ESC - Current - Cont. (A)

60

ESC - Current - Peak (A)

450

ESC - Current - Burst (A)

ESC - BEC - Voltage (V)

Select. 6.0V - 7.4V

ESC - BEC - Cont. (A)

3

ESC - BEC - Peak (A)

ESC - Protection

ESC - Cooling Fan

ESC - Case Material

ESC - Programming

ESC - Firmware Update

ESC - Telemetrie Aux.

ESC - Data Logging

ESC - Real-Time Data

ESC - Dimensions

ESC - Length (mm)

39,4

ESC - Width (mm)

32,8

ESC - Thickness (mm)

ESC - Wires (AWG) - Battery

14 AWG

ESC - Wires (AWG) - Motor

ESC - Connector - Battery

T-Plug

ESC - Weight (g)

72

ESC - Application

ESC - Application

1/10 Cars

ESC - Motor Type

Sensored & Sensorless Brushless Motors

ESC - Motor Control

Forward - Brake - Reverse

ESC - Level

Programmable (external):
Ja
Manufacturer:
Team Corally

Alle Modelle Arten

Motor turn max.:
Bis max. 8.5 Turn

Akku

Application:
  • Hobby Einsteiger
Width mm approx.:
  • 32
Height mm approx.:
  • 32
Weight g approx.:
  • 72

Fahrtenregler

Operating modes:
  • Vorwärts / Bremse
  • Vorwärts / Bremse / Rückwärts
Max. Operating voltage:
  • 11.1 Volt
Hill Brake:
Nein
Lipo cell count max.:
  • 3

Motoren Elektro

Max. BEC ampere:
  • 3
Motor connection:
  • 4.0 mm

Brushless Set

Connections:
  • Plug and Drive (ohne Lötarbeiten)
BEC tension:
  • 6.0 Volt
  • 7.4 Volt

Lüfter / Kühlkörper

Fan:
Ja

Reifen

Controller type:
  • Brushless Sensorless

Karosserien

Size scale:
  • 1/10
Vehicle type:
  • Buggy Offroad
  • Stadium Truck / Truggy Offroad
  • Monster Truck Offroad
  • Tourenwagen Onroad

Fernsteuerung

Scope of application:
  • Fahrzeuge

Empfänger

Max. Continuous current ampere:
  • 60

Servohörner

Length mm approx.:
  • 40

Akkustecker

Plug:
  • T-Plug / Typ Dean`s

Werkzeug

Waterproof:
Ja

> C-54010_TOROX 60_Anleitung
