C-54001 Speed Controller - CORA 40 - Brushed - 2-3

Write a review
CHF 37.90
Including tax
> 10 pieces available at supplier - Shipping in: 10 - 20 working days
+ −
Add to comparison list Add to wish list Rate this product
C-54001

Further products by Team Corally >

  • Order by 4 PM, delivered tomorrow! (stock items)
  • 30 years of RC model building experience
  • Top service by professional model builders
  • Over 500 manufacturers - 200,000 products

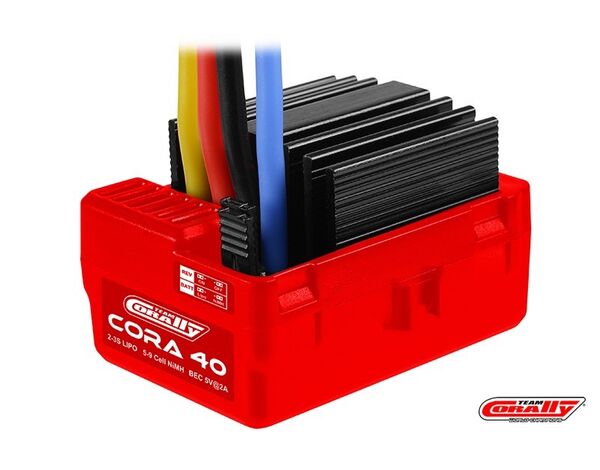

Team Corally Speed Controller - CORA 40 - Brushed - 2-3S

Technische Daten

Brandname

Team Corally RTR

Max. Cont. Current (A)

Forward: 40 A / Reverse: 20 A

Max. Current (A)

Forward: 180 A / Reverse: 90 A

Input Voltage (V) min. - max.

5-12.6 V

Resistance

Forward: 0.002 Ohn / Reverse: 0.004 Ohm

Nr of Li-xx Cells

2-3S

Nr of Ni-xx Cells

5-9 Cell NiMH

Motor Type

Brushed

Motor Limit

2S = 12T

3S = 18T

BEC Voltage (V)

6 V

BEC Current (A)

2 A

Length (mm)

46;5 mm

Width (mm)

34 mm

Height (mm)

28.5 mm

Weight incl. wire (g)

65 g

Programmable

Jumper

Throttle Mode

Forward / Reverse programmable Reverse lockout

Battery Mode

NiMH / LiPo

Cut off voltage

NiMH mode = 4.5 V

Lipo Cut off

2S = 6.5 V

3S = 9.75 V

Thermal Protection Temperature

105° C

Water Protection

Yes

Connector (Motor)

4 mm

Connector (Battery)

Tamiya style

Motor wire size

16 AWG

Battery wire size

16 AWG

Car Type Use

1/10th scale

Manufacturer:
Team Corally

Alle Modelle Arten

Motor turn max.:
Bis max. 12 Turn

Akku

Application:
  • Hobby Einsteiger

Ladegeräte

Lipo Cut Off:
Ja

Fahrtenregler

Operating modes:
  • Vorwärts / Bremse / Rückwärts
Max. Operating voltage:
  • 11.1 Volt
Hill Brake:
Nein
Lipo cell count max.:
  • 3

Motoren Elektro

Max. BEC ampere:
  • 2
Motor connection:
  • Kabel mit Stecker Tamiya Style (4 mm)

Brushless Set

Connections:
  • Plug and Drive (ohne Lötarbeiten)
BEC tension:
  • 6.0 Volt

Lüfter / Kühlkörper

Fan:
Nein

Karosserien

Size scale:
  • 1/10
Vehicle type:
  • Buggy Offroad
  • Formel 1 Flachbahner Pan Car Onroad
  • Stadium Truck / Truggy Offroad
  • Monster Truck Offroad
  • Tourenwagen Onroad
  • Pan Car - 1/10 - Flachbahner Onroad

Fernsteuerung

Scope of application:
  • Fahrzeuge

Empfänger

Max. Continuous current ampere:
  • 40
