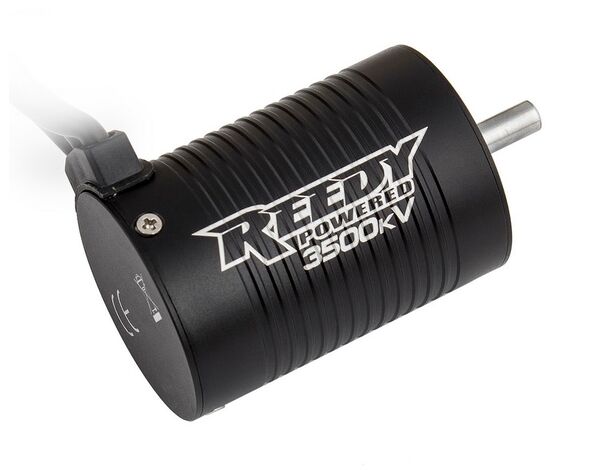

906 Reedy 550-SL4 Sensorless Brushless Motor

Write a review
CHF 83.90
Including tax
Not in stock at supplier. Delivery date unknown. (Delivery time min. 4 weeks)
+ −
Add to comparison list Add to wish list Rate this product
AE906

Further products by Reedy >

  • Order by 4 PM, delivered tomorrow! (stock items)
  • 30 years of RC model building experience
  • Top service by professional model builders
  • Over 500 manufacturers - 200,000 products

906 Reedy 550-SL4 Sensorless Brushless Motor

Features:

Powerful 4-pole Sensorless design

Oversized precision ball bearings

High-strength rotor

Hardened steel shaft

Triple insulated windings

Flexible silicone wires

Low-resistance connectors

The perfect upgrade for your 1:10 4WD RTR!

Reedy's new 550-SL4 is the perfect upgrade for your 1:10 4WD RTR! Due to its sensorless 4-pole configuration, the 550-SL4 operates powerfully, efficiently, and reliably in a variety of vehicles and applications.

The 3500kV rating provides plenty of speed with 2S LiPo batteries. But install a 3S LiPo battery for insane speeds that are barely controllable! A high-strength rotor provides plenty of torque and resists overheating better than 2-pole alternatives.

Flexible silicone wires ease wire routing in tight spaces and work in conjunction with 3.5mm bullet connectors to reduce power-robbing resistance and heat. Triple insulated windings, a hardened 5mm steel shaft, and oversized ball bearings enhance reliability to keep you out of the pits and on the track.

SPECIFICATIONS

Cells:2-3 LiPo, 4-9 NiMH

kV rating:3500

Applications:1:10 4WD buggy, truck, SC

Dimensions:52mm x 36mm

Shaft Diameter:5.0mm

Weight:222g

Power Wires:12-gauge silicone

Connectors:3.5mm

Manufacturer:
Reedy

Akku

Application:
  • Hobby Racer / Basher
Weight g approx.:
  • 222

Fahrtenregler

Max. Operating voltage:
  • 11.1 Volt
Fan size:
  • 550 1/10 Lang 3660 (D=36mm)
Lipo cell count max.:
  • 3

Motoren Elektro

Motor type:
Brushless
Shaft diameter mm:
  • 5 mm (1/8 Standard)
Speed KV per volt:
3500
Number of poles:
  • 4
Motor connection:
  • 3.5 mm

Reifen

Controller type:
  • Brushless Sensorless
Diameter mm approx.:
  • 36

Fernsteuerung

Scope of application:
  • Fahrzeuge

Servohörner

Length mm approx.:
  • 52
