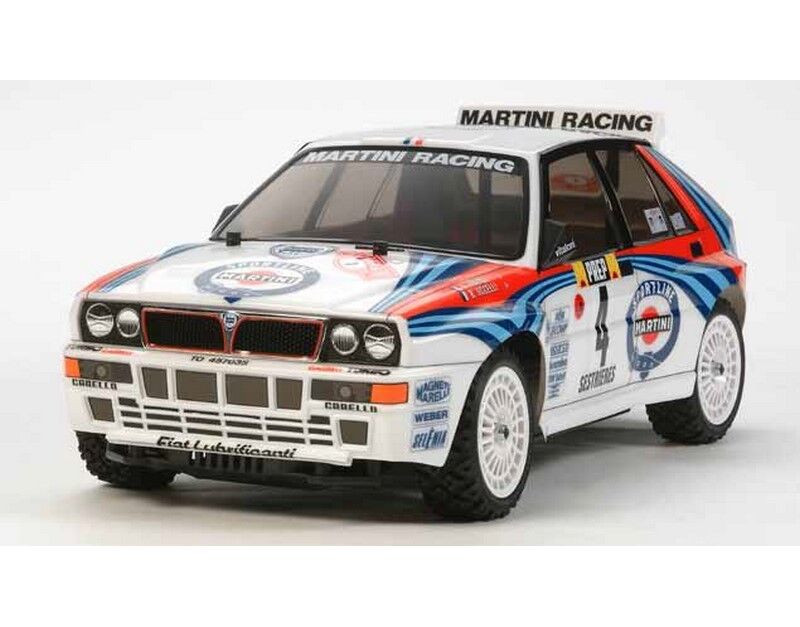

58569 Tamiya Lancia Delta Integrale XV01 1/10 Rally Baukasten

58569 Tamiya Lancia Delta Integrale (XV-01)

Baukasten Kit

Benötigt wird noch:

Fernsteuerung mit 1 Lenkservo

4-8 x Mignon (AA) für Fernsteuerung

7,2 Volt Akkupack

Ladegerät für Akkupack

Lexanfarbe für die Karosserie

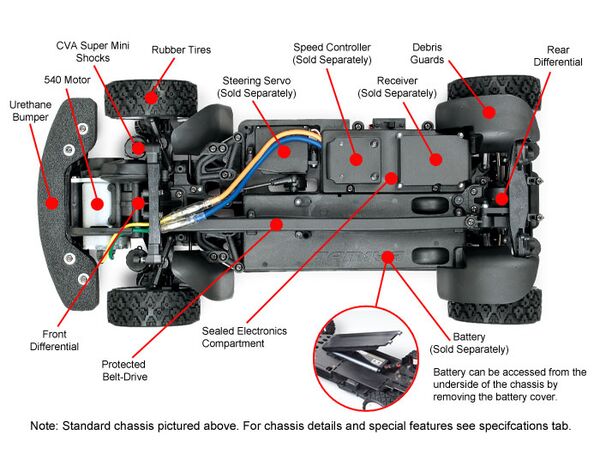

The XV-01 is a crossover chassis which has been designed to offer a dynamic R/C driving experience. In addition to the previous rally and truck versions of the XV-01, the on-road version chassis can also be converted to a drift-spec chassis. Kit features XV-01 PRO chassis coupled with on-road spec parts as follows:

Reversible Suspension Arms and TA06 Suspension

TA06 Rear Direct Coupling

TRF Dampers

Aluminum Turnbuckles

F/R Universal Drive Shafts w/Axle Ring Spring

Medium-Narrow 5-Spoke Wheels

Specification

•Scale : 1/10

•Construction type : assembly kit

•Terrain use : multi-purpose

•Drive-train : 4WD

•Drive type : Dual-Drive

•Drive line : dog bone

•Differential type : gear

•Suspension : fully independent double wishbone

•Steering mechanism : bell-crank

•Shock damper : oil-filled damper

•Shock damper material : plastic

•Tire type : rubber

•Tire tread : rally block

•Body material : Polycarbonate

•Chassis material : plastic

•Electronic Speed Control (ESC) : not included

•ESC model : n/a

•LED Light buckets : no

•LED lights : no

•Motor : 540-brushed type

•Bearings : shielded ball bearing

•Adjustable camber : yes

•Adjustable toe angles : front and rear

•Adjustable ground clearance : yes

•Adjustable gear ratio : yes

•Adjustable wheelbase : fixed

•Adjustable track width : fixed

•Adjustable shock angle : yes

•Special feature 1 : Dust covers for debris protection for radio gear

•Special feature 2 : Front-mounted motor is housed in a gearbox which has been designed for ease of maintenance

•Special feature 3 : Radio gear components are protected by covers that are secured by screws

•Special feature 4 : A hatch on the underside of the XV-01 chassis enables quick access to the battery

•Special feature 5 : Holes in the chassis bottom help remove any debris which may block steering movement during off-road use

•Special feature 6 : Reversible-type rear suspension ensures plenty of suspension stroke for off-road driving

•Special feature 7 : The separate suspension mounts makes it easy to change settings such as toe angle

•Requires A : 2-channel radio gear & electronic speed control

•Requires B : 7.2 battery & charger

•Requires C : polycarbonate paint

Specs and Features

Scale 1/10 scale

Construction type: assembly kit

Terrain use: on-road

Drive-train: 4WD

Drive type: multi

Drive line: universal

Differential type: gear

Suspension: fully independent double wishbone

Steering mechanism: bell-crank

Shock damper: oil-filled damper

Shock damper material: aluminum

Tire type: not included

Tire tread: n/a

Body material: n/a

ESC: not included

ESC type: n/a

LED Light buckets: no

LED lights: no

Motor type: not included

Bearings: sealed ball bearing

Chassis material: plastic

Sticker material: vinyl

Internal gear ratio: 2.6

Adjustable camber: yes

Adjustable toe angles: front and rear

Adjustable ride height: yes

Adjustable gear ratio: yes

Adjustable wheelbase: yes

Adjustable track width: yes

Adjustable shock angle: yes

Special features: Chassis features a front-motor, belt-driven 4WD layout with the battery pack positioned along the

Center-line for excellent balance.

Requires: 7.2 battery & charger

Requires: wheels, tires, body set, motor, esc

Requires: radio gear, servo, receiver

Note: Drive belt covers, wheel well liners, and R/C unit covers are not included.
