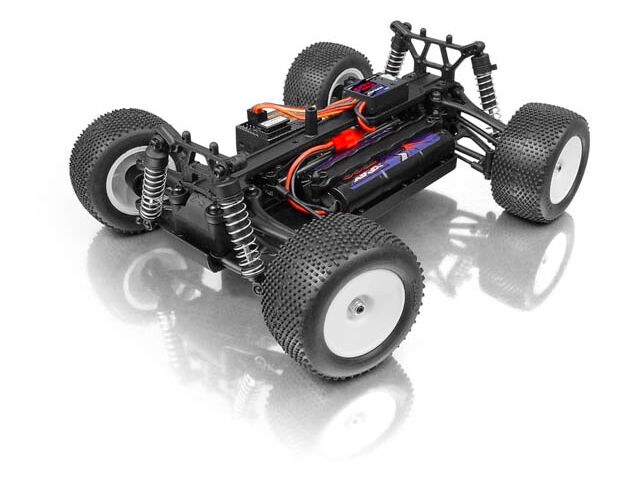

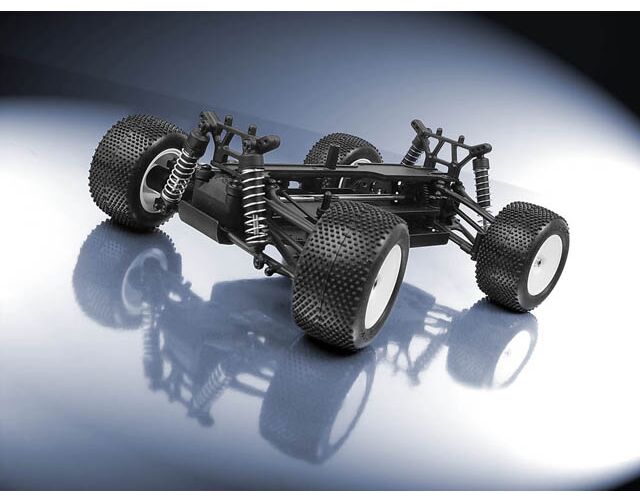

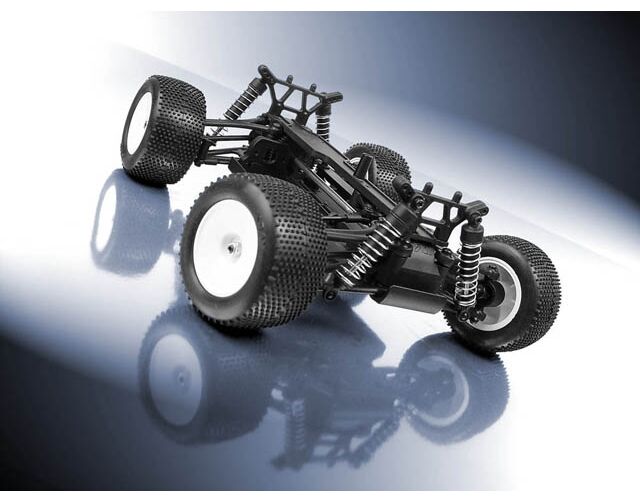

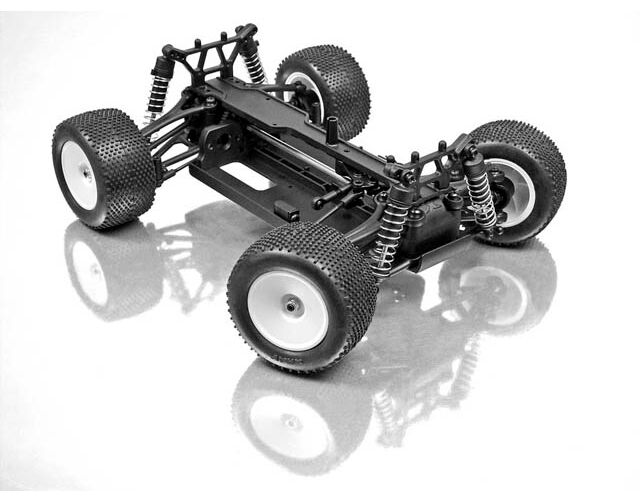

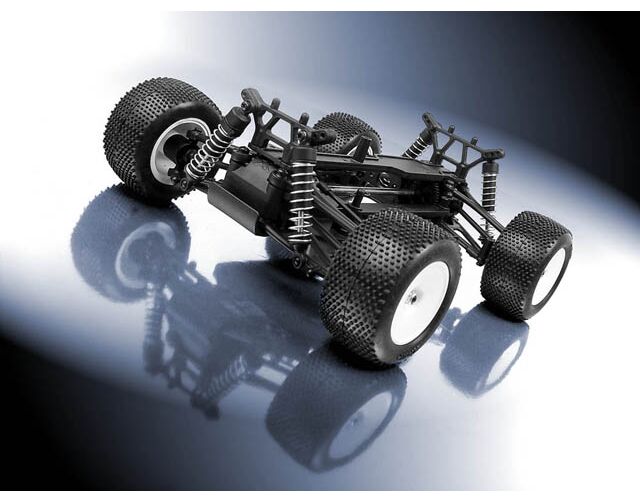

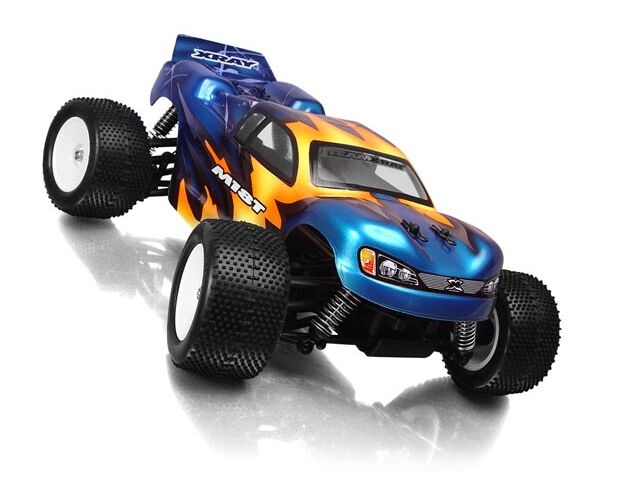

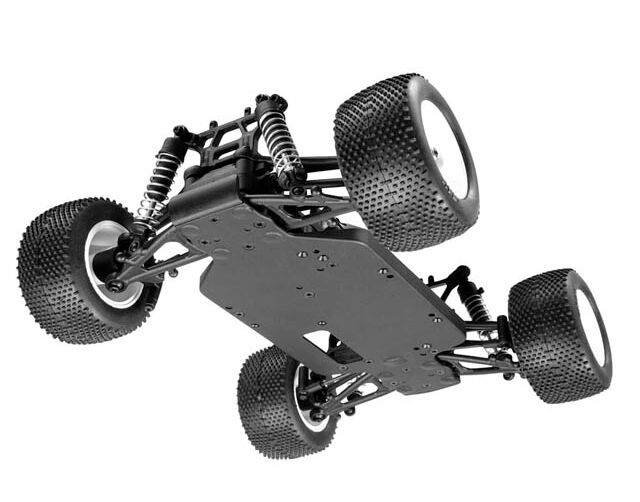

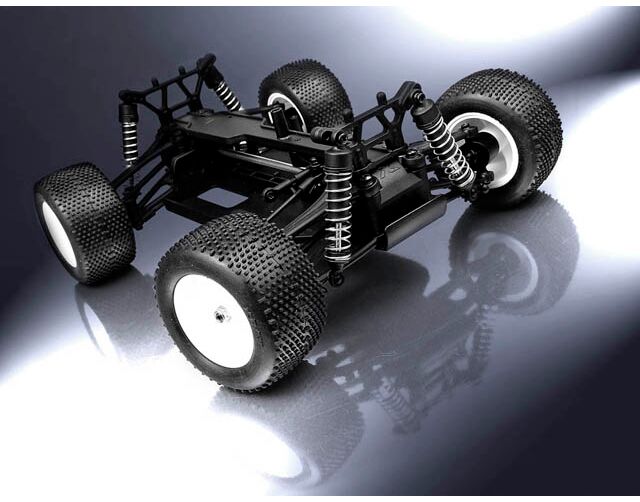

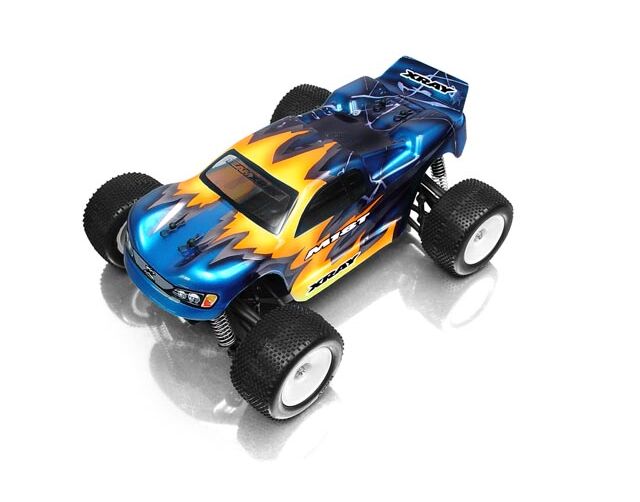

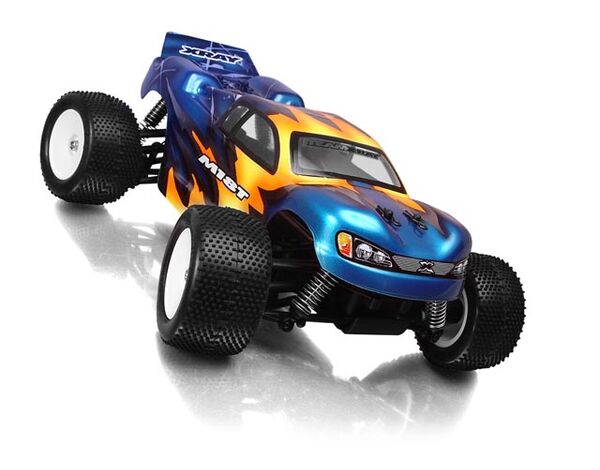

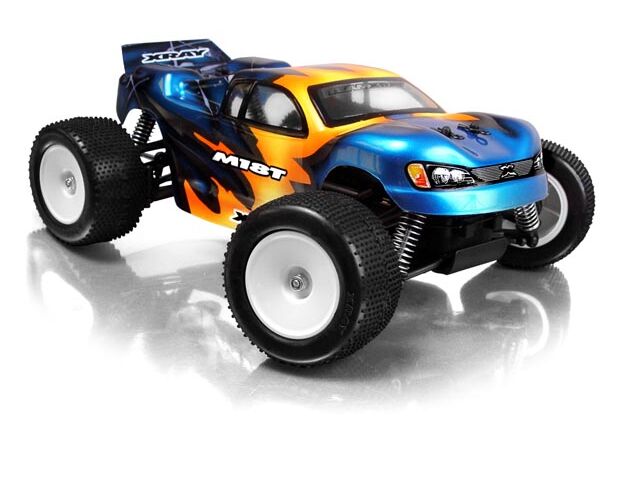

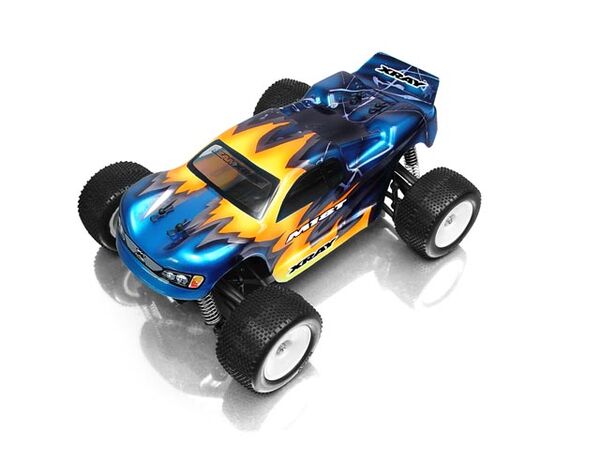

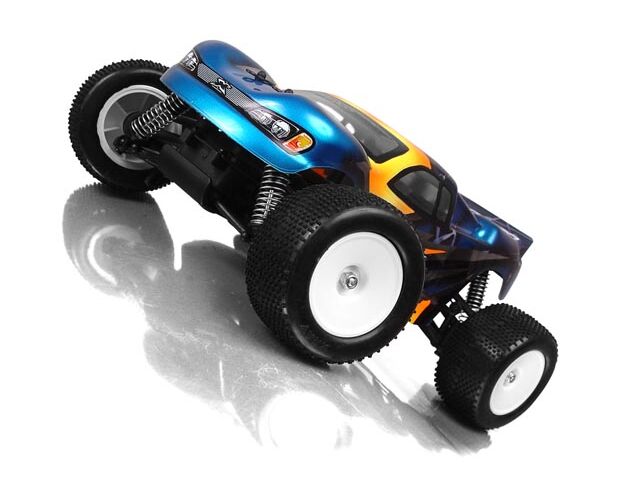

380500 XRAY M18T - 4WD SHAFT DRIVE 1/18 MICRO TRUCK
The all-new Xray M18T is truly the first mini truck that is capable of transforming from a racer to a monster truck. Imagine, a lightweight high performance 4×4 racer that can transform into a huge mini monster truck capable of handling all that you can find for it. ..Race it…Jump it…Climb it…with the one and only M18T…From XRAY…Of course…
The all new M18T is a unique 1/18 scale micro sized truck that was designed by the world famous Xray design team for all out fun and enjoyment. Whether you race it or bash it you are going to love the four wheel independent suspension oil filled shocks, high performance 4WD balanced chassis layout that features 22 high performance ball bearings.
The expert craftsmanship and attention to detail that made the M18 so popular is carried over and is clearly evident everywhere on the M18T. The superb race proven driveline is capable of handling high loads and super fast motors.
With a simple Monster conversion kit you can make this big little truck even bigger. The unique well thought out design allows the addition of four more oil filled shocks, (8 in total). 30% larger tires with a traditional monster tread pattern that helps you crush and climb all that dares to challenge the M18T.
Main features:

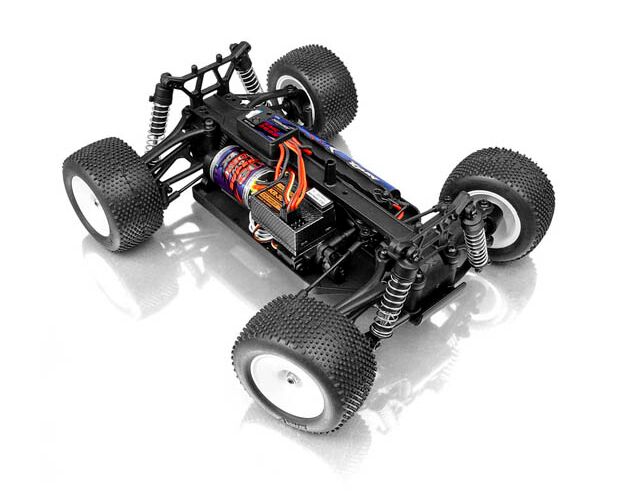

•1/18 professional 4WD high load competition shaft driven micro truck
•optional conversion set transforms the truck into a monster truck

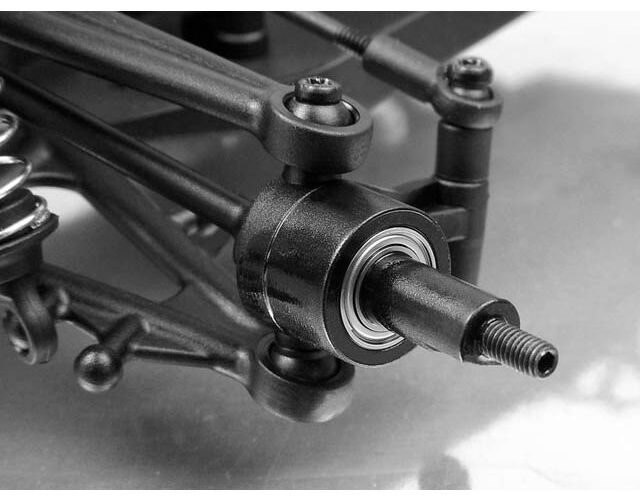

•maximum efficiency drivetrain includes 22 high-speed ball-bearings

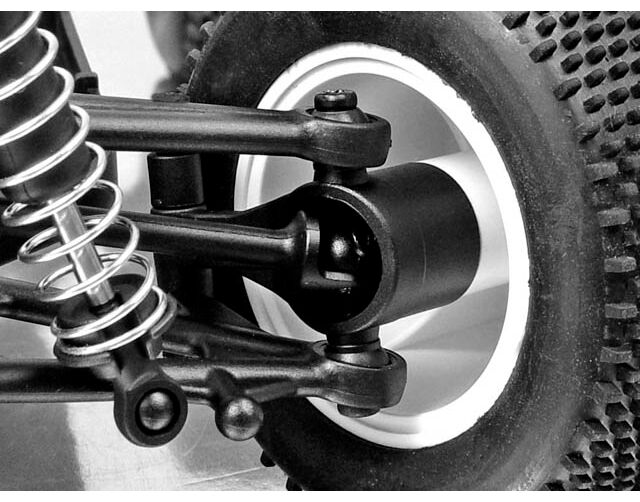

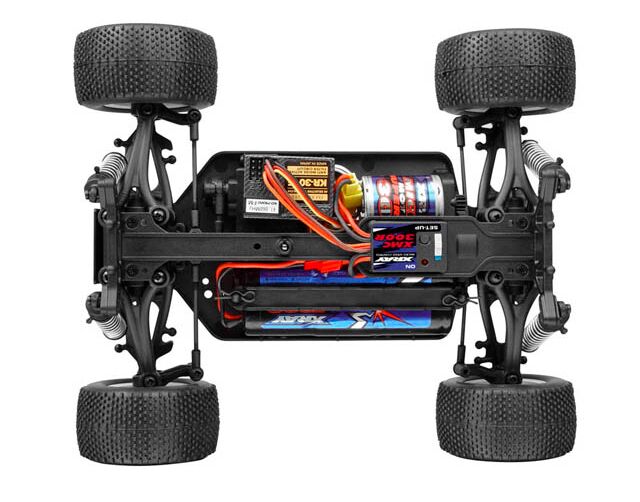

•fully independent front and rear suspension

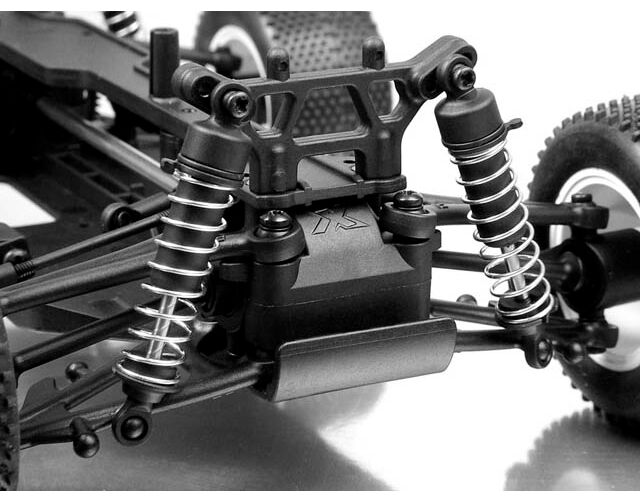

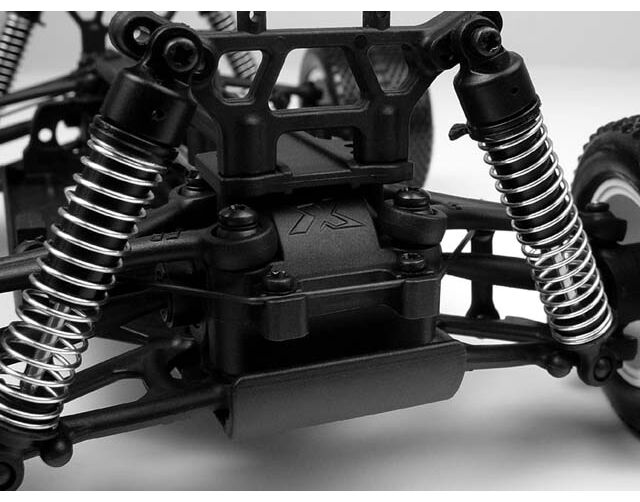

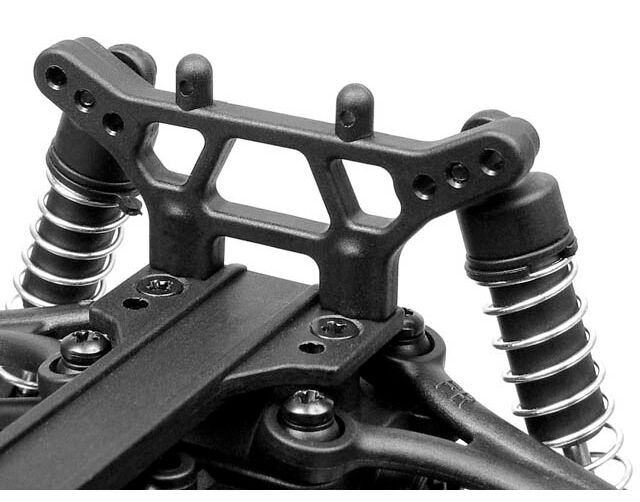

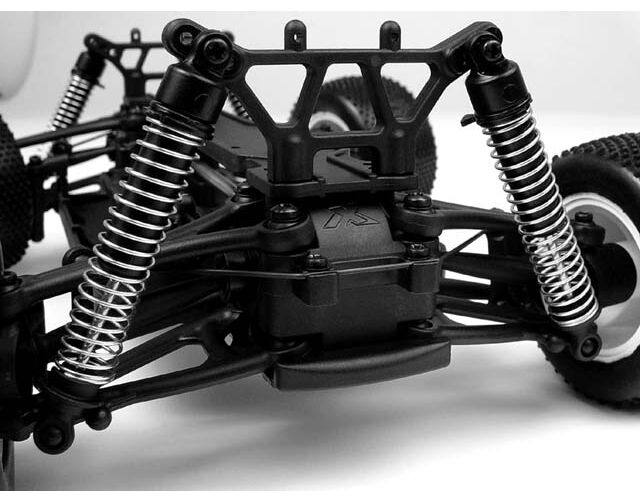

•oil-filled coil-over shocks

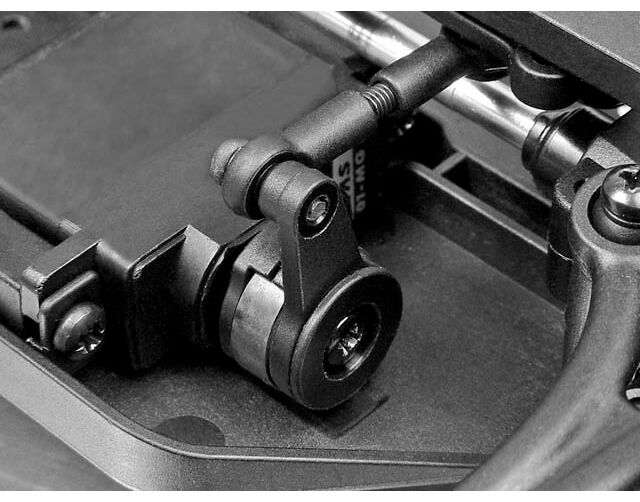

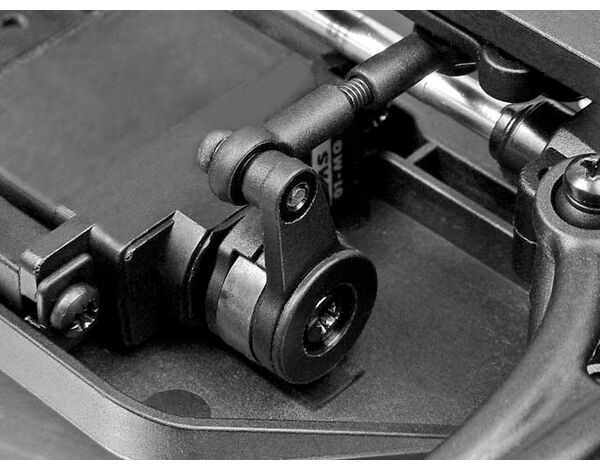

•servo saver included

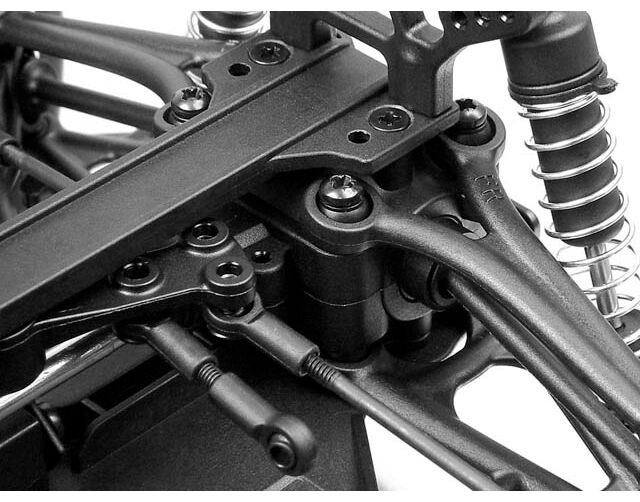

•adjustable turnbuckles
•front and rear adjustable ball differentials
•adjustable shock position for damping adjustment

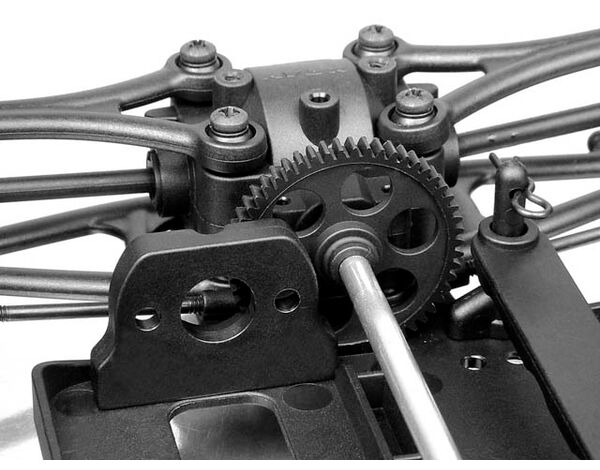

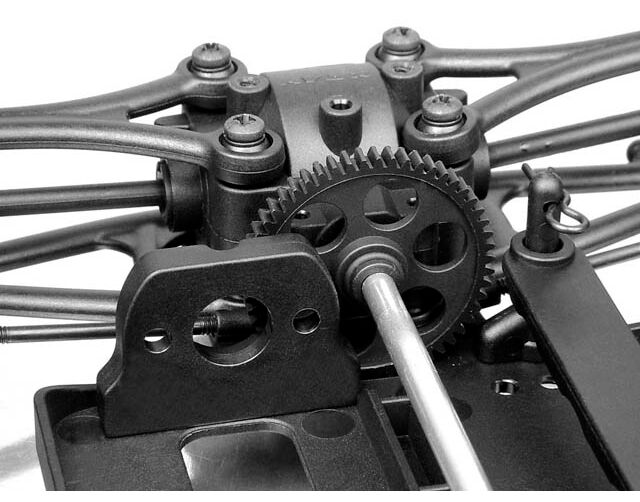

•easily-adjustable motor mount

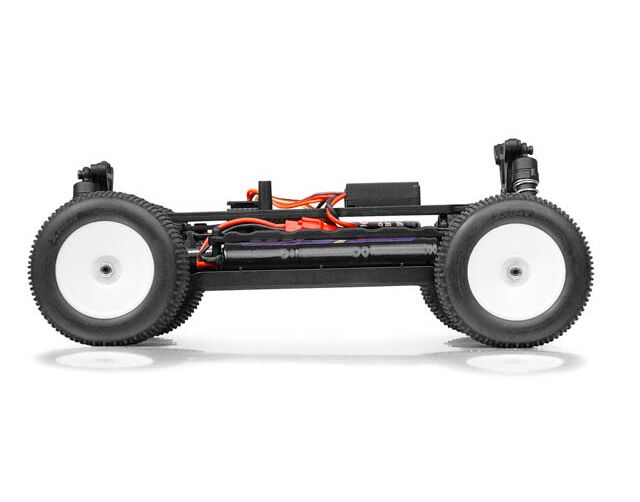

•chassis accommodates 5 or 6 cell battery packs
•extensive line of micro electronics and optional parts from Xray
M18T includes:
• set of low pin rubber tires + wheels

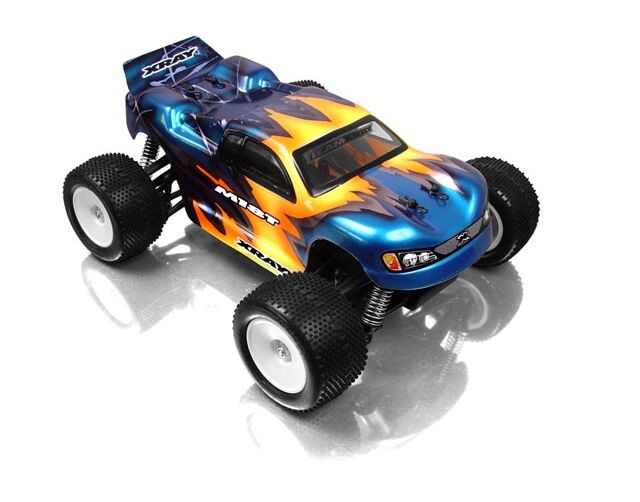

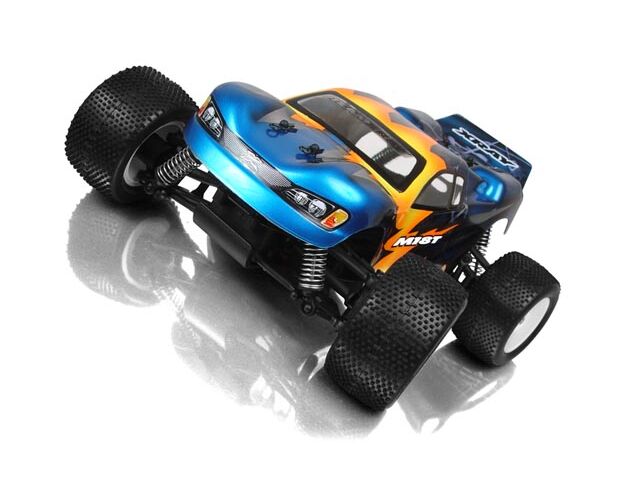

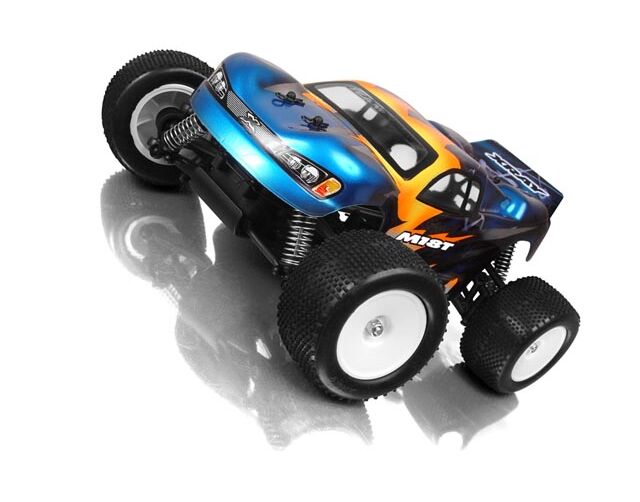

• 1/18 micro racing truck body
• pinion set
• HUDY phillips screwdriver for comfortable assembly
Not included:
• radio system (transmitter and receiver)
• micro speed controller
• micro motor
• micro battery pack
• micro servo
• lexan paint
• CA glue
Technical specifications:
– length (without body): 211mm
– wheelbase: 150mm
– front width (outside rims): 178mm
– rear width (outside rims): 180mm
– front caster: 12.3°
– weight: cca 295g
– internal gear ratio: 2.5
Manufacturer:
Team Xray
Fahrzeuge (Alle Attribute)
Driving surface:
- Offroad / Gelände
Type of drive:
- 4WD
Ground clearance mm approx.:
- 5
Flugzeuge
Level of completion:
- Baukasten Kit
Boote
Age recommendation (Planet-rc):
- ab 12 Jahren
Recommended battery type:
- Lipo Akku
- NimH Akku
Akku
Skill Level:
- Fortgeschrittene
Width mm approx.:
- 107
Weight g approx.:
- 440
Fahrtenregler
Max. Operating voltage:
- 8.4 Volt
Motoren Elektro
Motor drive type:
- Elektro Brushed (Bürstenmotor)
Wheelbase mm approx.:
- 150
Brushless Set
Speed km / h approx.:
- 50
Reifen
Wheel diameter mm approx.:
- 30
Felgen
Color:
- Unlackiert
Karosserien
Size scale:
- 1/18
Vehicle type:
- Monster Truck Offroad
Wheel holder / driver:
- Andere
Servohörner
Length mm approx.:
- 220
Zum Betrieb dieses Modells wird folgendes Zubehör benötigt:
- Motivierterter Fahrer der Spass am Schrauben hat...✌
- Fernsteuerung mit mindestens 2 Kanälen
- Micro Lenkservo
- Micro Motor und elektronischer Geschwindigkeitsregler
- NiMh oder LiPo Akku
- Passendes Ladegerät
- Lexanfarbe für die Karosserie
- geeignetes Werkzeug
- Lipo Sicherheitstasche (Empfehlung)
Ausser dem Pilot ✌ findest Du alles unter Zubehör / Tuning und Top Zubehör
