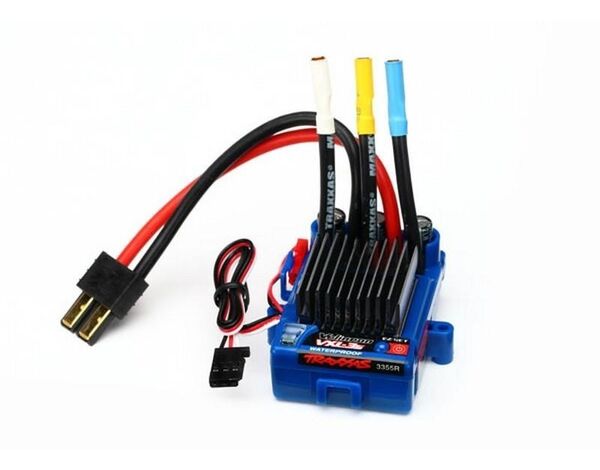

3355R Traxxas VXL-3S Electronic Speed Control
- Order by 4 PM, delivered tomorrow! (stock items)
- 30 years of RC model building experience
- Top service by professional model builders
- Over 500 manufacturers - 200,000 products
Please sign in so that we can notify you about a reply
VXL-3s 1/10 Electronic Speed Control, waterproof (brushless) (fwd/rev/brake)
Neue Version
VXL-3s WATERPROOF ESC SPECIFICATIONS
Input Voltage: NiMH 4-9 Cells (4.8 to 10.8 Volts DC);
LiPo 2-3 Cells (7.4 to 11.1 Volts DC)
Case Size: 39mmW x 55mmD x 33mmH
Weight: 90 grams
Motor Limit (Brushless): No motor limit
On Resistance Forward: 0.00075 Ohms
On Resistance Reverse: 0.00075 Ohms
BEC Voltage: 6.0 V
BEC Current: 2.5A
Power Wire: 12-Gauge Maxx® Cable
Input Harness Wire: 26 Gauge / 100mm
Low Voltage Detection: 2-Stage indicators, switchable (on or off)
Thermal Protection: 2-Stage thermal shutdown
Profile selection: Sport Mode:
100% FWD, 100% BRAKES, 100% REV
Race Mode:
100% FWD, 100% BRAKES, NO REV
Training Mode:*
50% FWD, 100% BRAKES, 50% REV
Single-Button Setup: Yes, Traxxas EZ-Set®
Battery Input Connector : Traxxas High-Current Connector
Motor Types : Brushless
Ports: RX Input, auxiliary fan
*Patented
Compare to: XL-5 | VXL-3m
Velineon Brushless Power System logo
Part# Description
3355RVXL-3s Electronic Speed Control, waterproof (brushless)
3350RVelineon VXL-3s Brushless Power System, waterproof (includes waterproof VXL-3s ESC and Velineon 3500 motor)
Programmable (external):
Nein
Manufacturer:
Traxxas
Akku
Application:
- Hobby Racer / Basher
Width mm approx.:
- 40
Height mm approx.:
- 33
Weight g approx.:
- 90
Fahrtenregler
Max. Operating voltage:
- 11.1 Volt
Hill Brake:
Nein
Lipo cell count max.:
- 3
Motoren Elektro
Max. BEC ampere:
- 3
Motor connection:
- 3.5 mm
Brushless Set
Connections:
- Plug and Drive (ohne Lötarbeiten)
BEC tension:
- 6.0 Volt
Lüfter / Kühlkörper
Fan:
Optional
Reifen
Controller type:
- Brushless Sensorless
Karosserien
Size scale:
- 1/10
Vehicle type:
- Buggy Offroad
- Stadium Truck / Truggy Offroad
- Monster Truck Offroad
- Short Course Truck
Fernsteuerung
Scope of application:
- Fahrzeuge
Empfänger
Max. Continuous current ampere:
- 80
Servohörner
Length mm approx.:
- 55
Balancer Verlängerungen
Fits for model:
- Traxxas 4-Tec 2.0 Onroad - VXL - 3S
- Traxxas 4-Tec 3.0 Onroad - 1/9 - VXL - 3S
- Traxxas Bandit 2WD - VXL - 3S
- Traxxas Rustler 2WD 1/10 VXL - 3S
- Traxxas Rustler 4x4 1/10 VXL - 3S
- Traxxas Slash 2WD 1/10 - VXL - 3S
- Traxxas Slash 4x4 1/10 - VXL - 3S
- Traxxas Stampede 2WD 1/10 VXL - 3S
- Traxxas Stampede 4x4 1/10 VXL - 3S
Akkustecker
Plug:
- Traxxas, Traxxas ID
Werkzeug
Waterproof:
Ja
