30619 Kyosho 1/10 4WD EP Racing Buggy Turbo Optima
- Commandé avant 16h, livré demain ! (articles en stock)
- 30 ans d'expérience en modélisme RC
- Service de qualité par des professionnels du modélisme
- Plus de 500 fabricants - 200 000 articles
Veuillez vous connecter afin que nous puissions vous informer d'une réponse

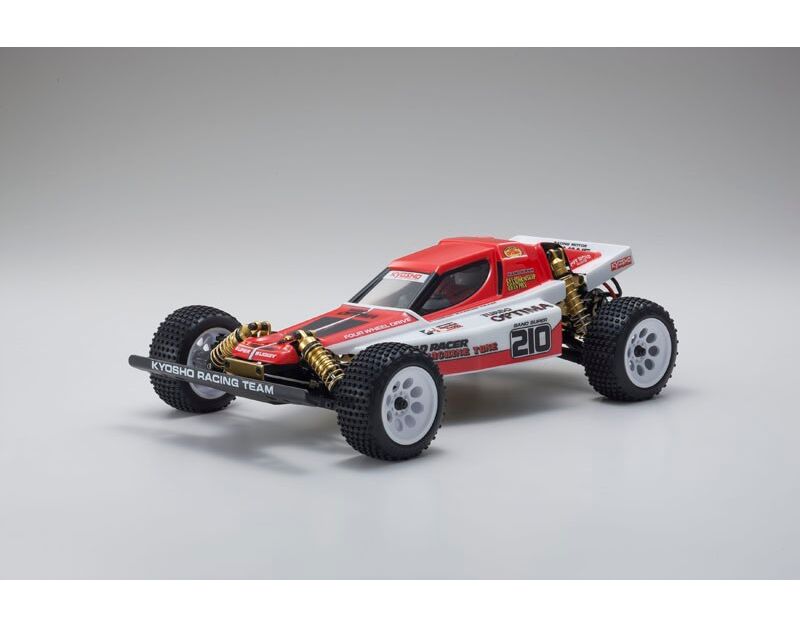

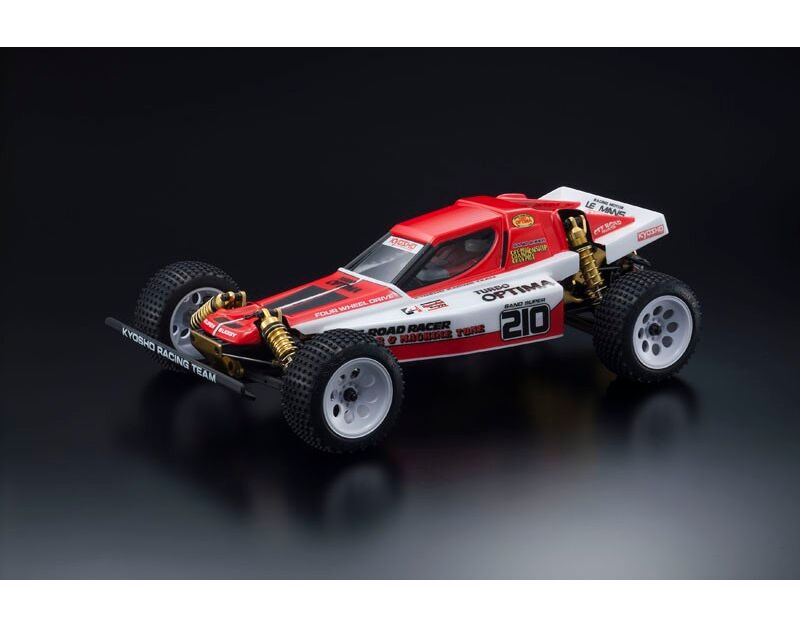

30619 Kyosho 1/10 4WD EP Racing Buggy Turbo Optima Kit
Even more competitive, even more cool…
Recreation of the original, but updated with the latest racing tech!
After the dynamic impact of the Optima was felt across the R/C racing scene, the Turbo Optima launched in 1986 as the strongest machine in the series. Until now. In addition to large diameter tires, large capacity pressure shocks, front & rear stabilizers and Le Mans 240S motor, the immortal Turbo Optima has modernized for 8.4V power and makes its debut as the 7th model of the vintage series. Key components of the Turbo Optima chassis have been redesigned to meet the demands of modern racing conditions and power sources, and share DNA with the Optima and Javelin. The new Turbo Optima is not simply a reproduction of the original and includes gold anodized parts that were optional upgrades on the original, gold shocks with dial adjustment of chassis height and new modern block pattern tires. Higher specs and design features deliver modern performance standards and visual impact that captures the magic of the original.
●While a faithful reproduction the original Turbo Optima, each key performance component has been revised for compatibility with modern power sources.
●4WD belt drive. Pulley for chain is also included in the kit so purchase of an optional chain can change the drive system.
●Equipped with FRP radio plate that is compatible with major brand ESC’s (speed controllers).
●Three toe angle settings ( 0°, 1°, 2°) can be used by inserting resin bushes into the rear hub carrier.
●Modernized aluminum hexagon wheel hubs can be securely fixed with set screws.
●Equipped with metal counter gear.
●Full ball bearing specifications (18 bearings).
●Includes separate helmet and polycarbonate body.
●Battery stays are compatible with various modern batteries and secured with hook and loop fasteners (battery strap with KYOSHO logo) for easy removal of battery.
●Hex screws used for assembly provide secure construction.
TECHNICAL DATA
■Length 395mm
■Width 244mm
■Height 120mm
■Wheelbase 260mm
■Front Tread 208mm
■Rear Tread 208mm
■Weight 1,600g (approx.)
■Tires (F/R) φ82×36mm
■Motor 540 class size (sold separately)
■Gear ratio 9.24 : 1
■Width 244mm
■Height 120mm
■Wheelbase 260mm
■Front Tread 208mm
■Rear Tread 208mm
■Weight 1,600g (approx.)
■Tires (F/R) φ82×36mm
■Motor 540 class size (sold separately)
■Gear ratio 9.24 : 1
KIT CONTENT
●Kit chassis
●Decals
●L-shaped hexagon wrench
●Cross wrench
●Shock wrench
●Shock oil
●Grease
●Decals
●L-shaped hexagon wrench
●Cross wrench
●Shock wrench
●Shock oil
●Grease
REQUIREMENT TO RUN
●2 channel R/C system (servo x 1, ESC x 1)
●540 motor (27T-20T recommended)
Brushless motor specifications: No.37031 Le Mans 240S Brushless motor 19.5T, No. 37051 Le Mans 240S ESC (60A/MAX 13.5 turn)
Brushed motor specifications: No.37021 Le Mans brushed motor 30T, No. 82245 KA060-91W ESC
●Battery (7.2V Nickel Hydrogen battery or 7.4V Li-Po battery)
●Battery charger (DC 12V regulated power supply)
●Paint tools for body painting
●Batteries for transmitter
●Tools (1.5/2.0/3.0mm hex wrench screwdriver, needle nose pliers, curved scissors, cutter. When replacing servo horn Phillips screwdriver may be required)
●540 motor (27T-20T recommended)
Brushless motor specifications: No.37031 Le Mans 240S Brushless motor 19.5T, No. 37051 Le Mans 240S ESC (60A/MAX 13.5 turn)
Brushed motor specifications: No.37021 Le Mans brushed motor 30T, No. 82245 KA060-91W ESC
●Battery (7.2V Nickel Hydrogen battery or 7.4V Li-Po battery)
●Battery charger (DC 12V regulated power supply)
●Paint tools for body painting
●Batteries for transmitter
●Tools (1.5/2.0/3.0mm hex wrench screwdriver, needle nose pliers, curved scissors, cutter. When replacing servo horn Phillips screwdriver may be required)
Fabricant:
Kyosho
Fahrzeuge (Alle Attribute)
Surface d'entraînement:
- Offroad / Gelände
Type de commande:
- 4WD
Garde au sol mm env.:
- 30
Flugzeuge
Niveau d'achèvement:
- Baukasten Kit
Boote
Recommandation d'âge (Planet-rc):
- ab 12 Jahren
Type de batterie recommandé:
- Lipo oder NimH Akku
Akku
Niveau de compétence:
- Fortgeschrittene
Largeur mm env.:
- 244
Hauteur mm env.:
- 120
Poids g env.:
- 1600
Fahrtenregler
Tension de fonctionnement max.:
- 7.4 Volt
Motoren Elektro
Type d'entraînement de moteur:
- Elektro Brushed (Bürstenmotor)
- Elektro Brushless (Bürstenloser Motor)
Éclairage LED:
Nein
Empattement mm env.:
- 260
Brushless Set
Vitesse km / h env.:
- 30
Reifen
Diamètre de roue mm env.:
- 80
Felgen
Couleur:
- Unlackiert
Karosserien
Echelle de taille:
- 1/10
Type de véhicule:
- Buggy Offroad
Support de roue / conducteur:
- 12 mm
Servohörner
Longueur mm env.:
- 395
Werkzeug
Imperméable:
Nein
