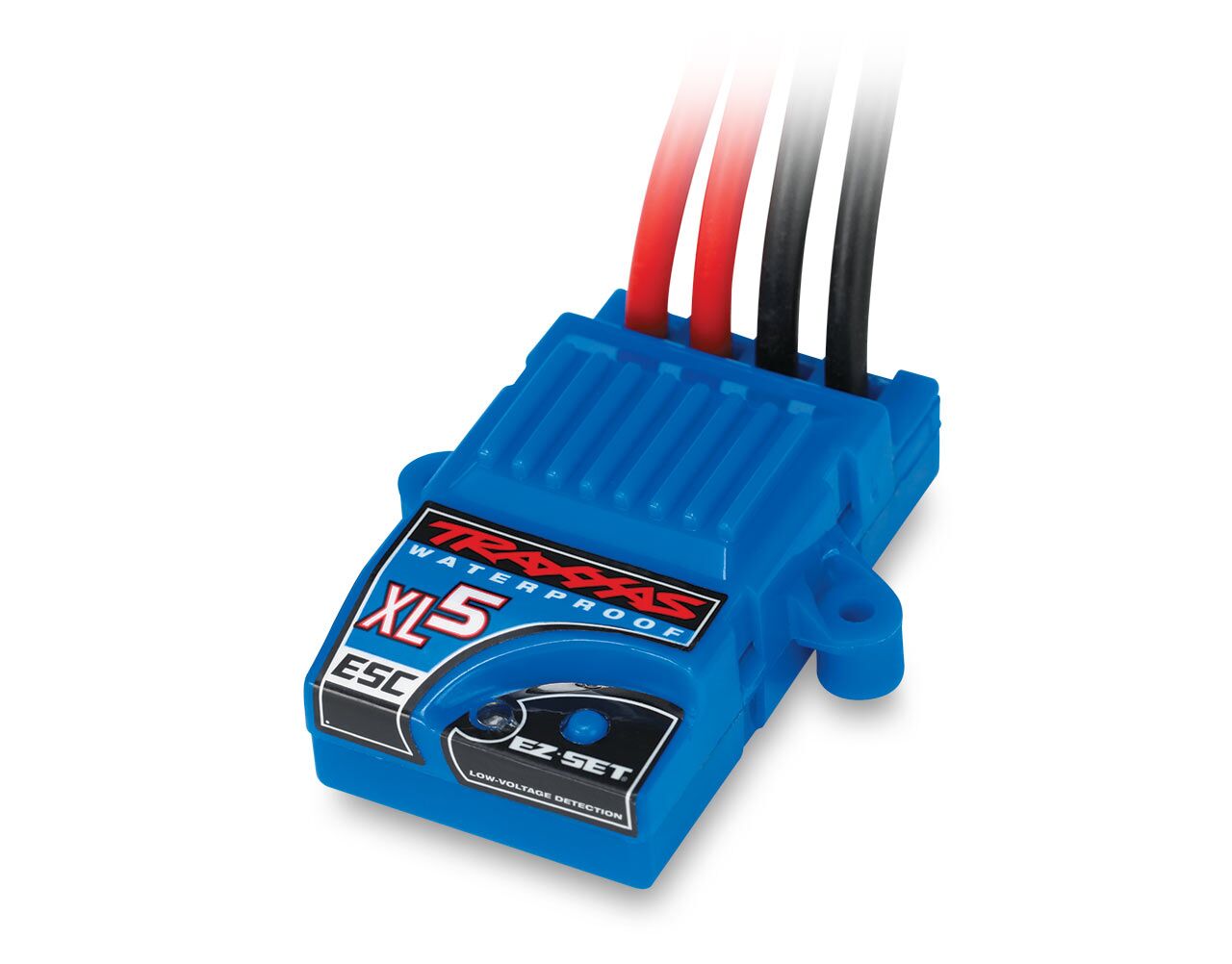

3018R: XL-5 Electronic Speed Control, waterproof (land version, low-voltage detection, fwd/rev/brake)
XL-5 LVD Waterproof ESC Features
Built-in two-stage low voltage detection (LVD)
for Lithium Polymer (LiPo) battery use
Innovative watersealed design
15-turn motor limit for 540 size motors
12-turn motor limit for 550 size motors
Fully-proportional forward, reverse, and braking control
Programmable with three drive profiles:
Sport Mode – Fwd / Brake / Rev
Race Mode – Fwd / Brake
Training Mode* – 50% Fwd / Brake / 50% Rev
EZ-Set® push-button setup
Multi-color LED
Thermal shutdown protection
Efficient, low-loss MOSFET design
Smooth, high-frequency operation
Easy installation in Traxxas models
XL-5 LVD WATERPROOF ESC SPECIFICATIONS
Input voltage:
4-7 Cells (4.8 to 8.4 Volts DC)
Case Size:
1.23"W x 2.18"D x 0.61" H
Weight:
2.44 Ounce
Motor Limit:
15-turns** (540 Size)
12-turns** (550 Size)
On Resistance Forward:
0.007 Ohms
On Resistance Reverse:
0.014 Ohms
BEC
