1-00074 Multiplex Servo HSB-9381TH Full Metal Case

Write a review
CHF 182.90
Including tax
1pc. or more pieces available at supplier - Shipping in: 20 - 30 working days
+ −
Add to comparison list Add to wish list Rate this product
MPX-1-00074

Further products by Multiplex >

  • Order by 4 PM, delivered tomorrow! (stock items)
  • 30 years of RC model building experience
  • Top service by professional model builders
  • Over 500 manufacturers - 200,000 products

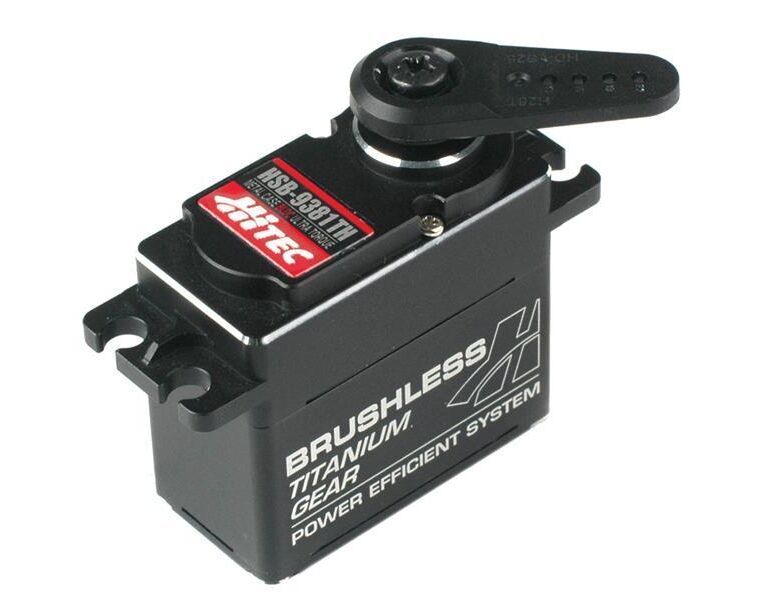

1-00074 Multiplex Servo Hitec HSB-9381TH Full Metal Case

Das Brushlessservo HSB-9381TH von Hitec kann mit zu 8,4V betrieben werden und leistet dabei 34Kg Stellkraft bei 0,14 Sekunden Stellzeit/60°.

Product Description

Features

• Programmable 12-bit Digital PWM Circuitry

• Magnetic Encoder Position Sensor

• High-Performance Brushless Motor

• Low Power Consumption for Energy Efficiency

• Constant Torque Output Across Voltage Range

• IP-65 Rated, Aluminum Alloy Case

• 25 Tooth Output Shaft

• Customization and Modification Options Available

Optional Configurations

• PWM or TTL Protocol Capability

• Connector Options Available

Programmable Functions

• End Point Adjustments

• Direction

• Fail Safe

• Dead Band

• Speed (Slower)

• Soft Start Rate

• Data Save / Load

• Program Reset (From File)

HSB-M9381TH Servo Actuator Specifications

Performance Specifications

Operating Voltage Range (volts DC): 6.0V ~ 7.4V

No Load Speed (second @ 60°): 0.17 ~ 0.14

No Load Speed (RPM): 59 ~ 71

No Load Speed (deg. per sec.): 353° ~ 429°

Maximum Torque Range (oz. / in.): 472

Maximum Torque Range (kg. / cm.): 34

Maximum Torque Range (Ncm.): 383

Current Draw at Idle (mA): 27

No Load Operating Current Draw (mA): 250

Stall Current Draw (mA): 2,700

Physical Specifications

Dimensions (inches): 1.57 x 0.79 x 1.50

Dimensions (millimeters): 40.0 x 20.0 x 38.0

Weight (ounces): 2.78

Weight (grams): 79.0

Motor Type: BLDC

Rated Motor Lifecycle: 50,000 Cycles

Position Sensor: Mech Pot

Position Sensor Rated Lifecycle: 1 Million

Gear Material: MPD 1st Gear & 3 Titanium Gears

Bearing Type: Dual Ball Bearing

Output Shaft (type / Ømm): 25 / 6

Case Material: Full Aluminum Alloy

Dust / Water Resistance: Dust / Splash

Manufacturer:
Multiplex
